VSU201094

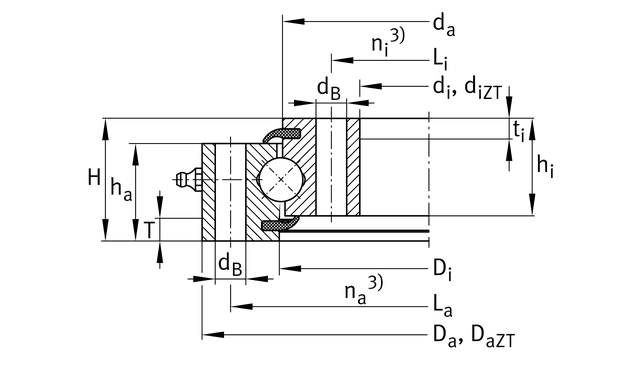

Slewing Ring, Four Point contact bearing, without gear teeth

Class description short	Slewing ring, 4 point contact bearing, without gear teeth
Mass netto	77.0 kg
Operating temperature min.	-25.0 °C
Operating temperature max.	80.0 °C
Basic dynamic load rating, radial (for radial load only)	179000.0 N
Basic static load rating, radial (for radial load only)	810000.0 N
REACH	REACH compliant with declarable lead proportion
RoHS	RoHS compliant with declarable substances
Basic dynamic load rating, axial	198000.0 N
Basic static load rating, axial	1770000.0 N
Inner diameter inner ring	1022.0 mm
Inner diameter outer ring	1095.5 mm
Inner diameter inner ring lower tolerance	0.0 mm
Inner diameter inner ring upper tolerance	0.7 mm
Brand	INA
Fixing bore	14.0 mm
Height	56.0 mm
Width inner ring	44.5 mm
Inner diameter outer ring lower tolerance	0.0 mm
Inner diameter outer ring upper tolerance	0.7 mm
Max. radial load fixing screws (friction locking)	198200.0 N
Outside diameter inner ring	1092.5 mm
Outside diameter inner ring lower tolerance	-0.7 mm
Outside diameter inner ring upper tolerance	0.0 mm
Outside Diameter	1166.0 mm
Outside diameter lower tolerance	-0.7 mm
Outside diameter upper tolerance	0.0 mm
PFAS	nein
Pitchcircle diameter fixing holes inner ring	1048.0 mm
Pitchcircle diameter fixing holes outer ring	1140.0 mm
Number of fixing holes in inner ring	48.0
Number of fixing holes in outer ring	48.0
Radial internal clearance	Standard_SL
Width outer ring	44.5 mm
