49 093,85 zł

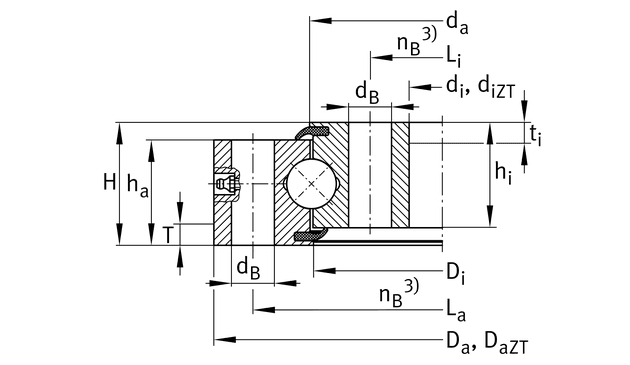

Slewing Ring, Four Point contact bearing, without gear teeth
| Class description short | Slewing ring, 4 point contact bearing, without gear teeth |
| Mass netto | 128.0 kg |
| Operating temperature min. | -25.0 °C |
| Operating temperature max. | 80.0 °C |
| Basic dynamic load rating, radial (for radial load only) | 350000.0 N |
| Basic static load rating, radial (for radial load only) | 1720000.0 N |
| REACH | REACH compliant with declarable lead proportion |
| RoHS | RoHS compliant with declarable substances |
| Basic dynamic load rating, axial | 385000.0 N |
| Basic static load rating, axial | 3750000.0 N |
| Inner diameter inner ring | 955.0 mm |
| Inner diameter outer ring | 1053.0 mm |
| Inner diameter inner ring lower tolerance | 0.8 mm |
| Inner diameter inner ring upper tolerance | 0.8 mm |
| Brand | INA |
| Fixing bore | 22.0 mm |
| Height | 63.0 mm |
| Width inner ring | 54.0 mm |
| Normal axial clearance max. | 0.24 mm |
| Normal radial clearance max. | 0.13 mm |
| Max. radial load fixing screws (friction locking) | 363300.0 N |
| Normal axial clearance min. | 0.05 mm |
| Normal radial clearance min. | 0.03 mm |
| Outside diameter inner ring | 1057.0 mm |
| Outside Diameter | 1155.0 mm |
| Outside diameter lower tolerance | 1.2 mm |
| Outside diameter upper tolerance | 1.2 mm |
| PFAS | nein |
| Pitchcircle diameter fixing holes inner ring | 995.0 mm |
| Pitchcircle diameter fixing holes outer ring | 1115.0 mm |
| Number of fixing holes in inner ring | 30.0 |
| Number of fixing holes in outer ring | 30.0 |
| Width outer ring | 54.0 mm |
