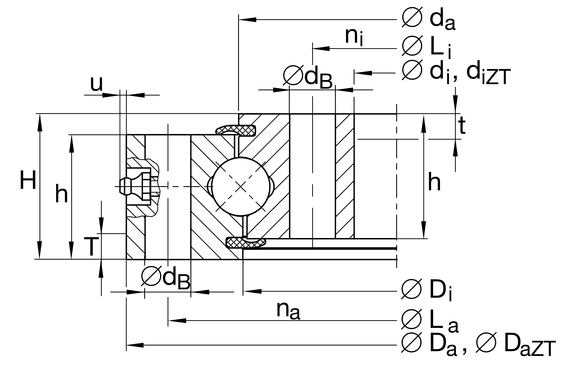

Four point contact bearings without gear teeth, sealed on both sides
| Class description short | Slewing ring, 4 point contact bearing, without gear teeth |
| Mass netto | 14.77 kg |
| Operating temperature min. | -25.0 °C |
| Operating temperature max. | 80.0 °C |
| Basic dynamic load rating, radial (for radial load only) | 163000.0 N |
| Basic static load rating, radial (for radial load only) | 300000.0 N |
| REACH | REACH compliant with declarable lead proportion |
| Basic dynamic load rating, axial | 179000.0 N |
| Basic static load rating, axial | 650000.0 N |
| Inner diameter inner ring | 191.0 mm |
| Inner diameter outer ring | 259.0 mm |
| Inner diameter inner ring lower tolerance | 0.5 mm |
| Inner diameter inner ring upper tolerance | 0.5 mm |
| Brand | INA |
| Centring diameter outer ring | 327.0 mm |
| Diameter centring outer ring tolerance | -IT8 |
| Diameter centring inner ring | 193.0 mm |
| Diameter centring inner ring tolerance | IT8 |
| Fixing bore | 14.0 mm |
| Height | 46.0 mm |
| Width inner ring | 41.0 mm |
| Length centering inner ring | 7.0 mm |
| Length centering outer ring | 7.0 mm |
| Normal axial clearance max. | 0.33 mm |
| Normal radial clearance max. | 0.2 mm |
| Max. radial load fixing screws (friction locking) | 89000.0 N |
| Normal axial clearance min. | 0.08 mm |
| Normal radial clearance min. | 0.05 mm |
| Outside diameter inner ring | 261.0 mm |
| Outside Diameter | 329.0 mm |
| Outside diameter lower tolerance | 0.8 mm |
| Outside diameter upper tolerance | 0.8 mm |
| PFAS | nein |
| Pitchcircle diameter fixing holes inner ring | 215.0 mm |
| Pitchcircle diameter fixing holes outer ring | 305.0 mm |
| Max. protrusion lubrication nipple | 2.0 mm |
| Number of fixing holes in inner ring | 20.0 |
| Number of fixing holes in outer ring | 20.0 |
| Width outer ring | 41.0 mm |
| Centering | ZT |
