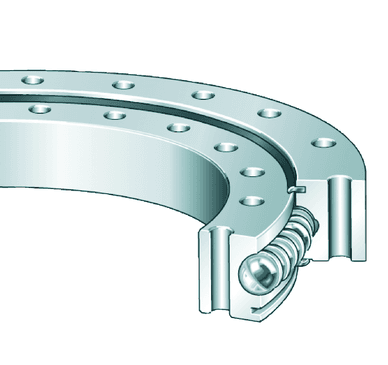

Four point contact bearings without gear teeth, sealed on both sides
| Class description short | Slewing ring, 4 point contact bearing, without gear teeth |
| Mass netto | 44.012 kg |
| Operating temperature min. | -25.0 °C |
| Operating temperature max. | 80.0 °C |
| Basic dynamic load rating, radial (for radial load only) | 255000.0 N |
| Basic static load rating, radial (for radial load only) | 365000.0 N |
| REACH | REACH compliant with declarable lead proportion |
| RoHS | RoHS compliant with declarable substances |
| Basic dynamic load rating, axial | 280000.0 N |
| Basic static load rating, axial | 790000.0 N |
| Inner diameter inner ring | 275.0 mm |
| Inner diameter outer ring | 379.0 mm |
| Inner diameter inner ring lower tolerance | 0.5 mm |
| Inner diameter inner ring upper tolerance | 0.5 mm |
| Brand | INA |
| Fixing bore | 18.0 mm |
| Height | 55.0 mm |
| Width inner ring | 50.0 mm |
| Normal axial clearance max. | 0.41 mm |
| Normal radial clearance max. | 0.25 mm |
| Max. radial load fixing screws (friction locking) | 124800.0 N |
| Normal axial clearance min. | 0.11 mm |
| Normal radial clearance min. | 0.06 mm |
| Outside diameter inner ring | 381.0 mm |
| Outside Diameter | 485.0 mm |
| Outside diameter lower tolerance | 0.8 mm |
| Outside diameter upper tolerance | 0.8 mm |
| PFAS | nein |
| Pitchcircle diameter fixing holes inner ring | 307.0 mm |
| Pitchcircle diameter fixing holes outer ring | 453.0 mm |
| Number of fixing holes in inner ring | 16.0 |
| Number of fixing holes in outer ring | 16.0 |
| Width outer ring | 50.0 mm |
