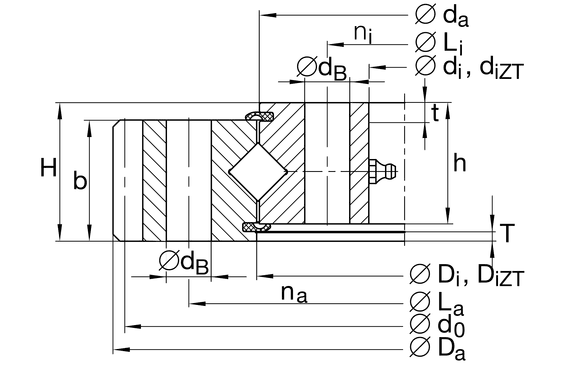

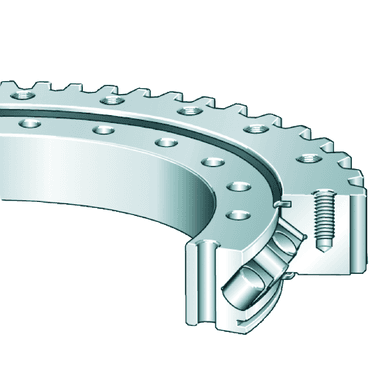

Crossed roller bearings with external gear teeth, sealed
| Class description short | Slewing ring, crossed roller bearing, external gear teeth |
| Mass netto | 13.21 kg |
| Operating temperature min. | -30.0 °C |
| Operating temperature max. | 80.0 °C |
| Basic dynamic load rating, radial (for radial load only) | 92000.0 N |
| Basic static load rating, radial (for radial load only) | 138000.0 N |
| REACH | REACH conform |
| RoHS | RoHS compliant |
| Basic dynamic load rating, axial | 129000.0 N |
| Basic static load rating, axial | 280000.0 N |
| Bore Diameter | 171.0 mm |
| Inner diameter outer ring | 236.0 mm |
| Brand | INA |
| Fixing bore | 13.0 mm |
| Height | 40.0 mm |
| Height of individual ring | 35.0 mm |
| Max. tooth force against tooth fracture (at a shock factor of 1,35) | 16100.0 N |
| Max. tooth force root fatigue strenght (at a shock factor of 1,2) | 11000.0 N |
| Maximum bearing preload | 0.02 mm |
| Max. radial load fixing screws (friction locking) | 53000.0 N |
| Min. bearing preload | 0.0 mm |
| Modul of gearing | 4.0 mm |
| Number of teeth | 78.0 |
| Outside diameter inner ring | 234.0 mm |
| Outside diameter inner ring lower tolerance | -0.2 mm |
| Outside diameter inner ring upper tolerance | 0.2 mm |
| Outside Diameter | 318.8 mm |
| PFAS | nein |
| Pitch circle diameter gearing | 312.0 mm |
| Pitchcircle diameter fixing holes inner ring | 195.0 mm |
| Pitchcircle diameter fixing holes outer ring | 275.0 mm |
| Number of fixing holes in inner ring | 12.0 |
| Number of fixing holes in outer ring | 12.0 |
| Width gearing | 35.0 mm |
| Width outer ring | 35.0 mm |
| Gearing | N |
