32 310,13 zł

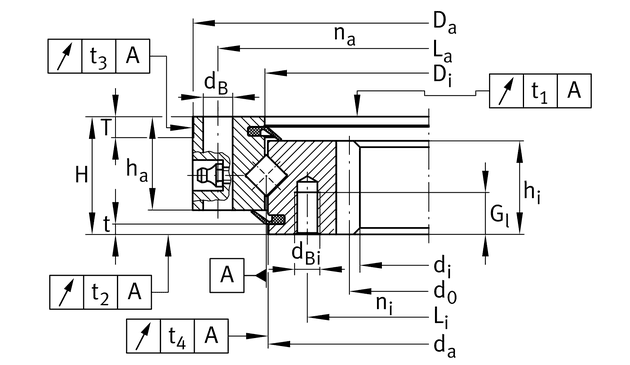

Crossed roller bearings, standard series 14, internal gear teeth, lip seals on both sides
| Class description short | Slewing ring, crossed roller bearing, internal gear teeth |
| Mass netto | 43.2 kg |
| Operating temperature min. | -25.0 °C |
| Operating temperature max. | 80.0 °C |
| Basic dynamic load rating, radial (for radial load only) | 164000.0 N |
| Basic static load rating, radial (for radial load only) | 345000.0 N |
| REACH | REACH compliant with declarable lead proportion |
| RoHS | RoHS compliant |
| Basic dynamic load rating, axial | 231000.0 N |
| Basic static load rating, axial | 700000.0 N |
| Bore Diameter | 444.0 mm |
| Inner diameter outer ring | 545.0 mm |
| Brand | INA |
| Diameter centring outer ring | 614.0 mm |
| Diameter centring outer ring tolerance | -IT7 |
| Diameter centring inner ring | 541.0 mm |
| Diameter centring inner ring tolerance | -IT7 |
| Fixing bore | 14.0 mm |
| Height | 56.0 mm |
| Inner diameter outer ring lower tolerance | 0.0 mm |
| Inner diameter outer ring upper tolerance | 0.5 mm |
| Length centering inner ring | 4.5 mm |
| Length centering outer ring | 10.0 mm |
| Max. tooth force against tooth fracture | 35000.0 N |
| Max. tooth force root fatigue strenght | 23700.0 N |
| Maximum bearing preload | 0.03 mm |
| Max. radial load fixing screws (friction locking) | 132200.0 N |
| Min. bearing preload | 0.01 mm |
| Modul of gearing | 6.0 mm |
| Number of teeth | 76.0 |
| PFAS | nein |
| Pitch circle diameter gearing | 456.0 mm |
| Pitchcircle diameter fixing holes inner ring | 505.0 mm |
| Pitchcircle diameter fixing holes outer ring | 590.0 mm |
| Number of fixing holes in inner ring | 32.0 |
| Number of fixing holes in outer ring | 32.0 |
| Running accuracy | 0.04 mm |
| Running accuracy | 0.04 mm |
| Running accuracy | 0.07 mm |
| Running accuracy | 0.07 mm |
| Thread depth oil connector | 20.0 mm |
| Tread fixing bore | M12 |
| Width inner ring | 44.5 mm |
| Width gearing | 44.5 mm |
| Width outer ring | 44.5 mm |
| Gearing | N |
