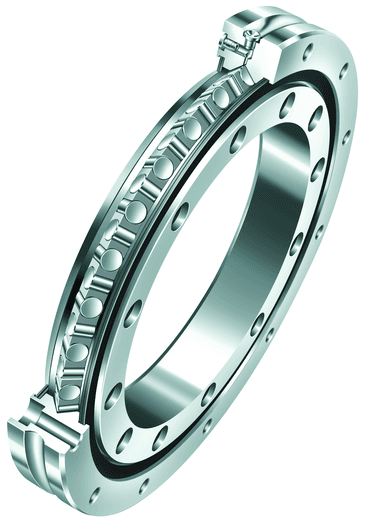

Crossed roller bearings standard series 08, without gear teeth, lamellar seals on both sides
| Class description short | Slewing ring, Crossed roller bearing, without gear teeth |
| Mass netto | 4.2 kg |
| Operating temperature min. | -30.0 °C |
| Operating temperature max. | 80.0 °C |
| Basic dynamic load rating, radial (for radial load only) | 54000.0 N |
| Basic static load rating, radial (for radial load only) | 151000.0 N |
| Limiting speed | 175.0 1/min |
| REACH | REACH compliant with declarable lead proportion |
| RoHS | RoHS compliant with declarable substances |
| Basic dynamic load rating, axial | 75000.0 N |
| Basic static load rating, axial | 310000.0 N |
| Bore Diameter | 180.0 mm |
| Inner diameter outer ring | 224.0 mm |
| Bore diameter lower tolerance | 0.0 mm |
| Bore diameter upper tolerance | 0.025 mm |
| Brand | INA |
| Counterbore depth of fixing holes | 6.8 mm |
| Counterbore diameter of fixing holes | 11.0 mm |
| Fixing bore | 6.8 mm |
| Height | 25.4 mm |
| Height of inner ring | 24.8 mm |
| Max. radial load screws | 13600.0 N |
| Outside diameter inner ring | 209.0 mm |
| Outside Diameter | 255.0 mm |
| Outside diameter lower tolerance | -0.032 mm |
| Outside diameter upper tolerance | 0.0 mm |
| PFAS | nein |
| Pitchcircle diameter fixing holes inner ring | 195.0 mm |
| Pitchcircle diameter fixing holes outer ring | 240.0 mm |
| Number of fixing holes in inner ring | 20.0 |
| Number of fixing holes in outer ring | 20.0 |
| Groove radius | 5.0 mm |
| Running accuracy A (related to the raceway) | 0.01 mm |
| Height outer ring | 24.8 mm |
