21 818,60 zł

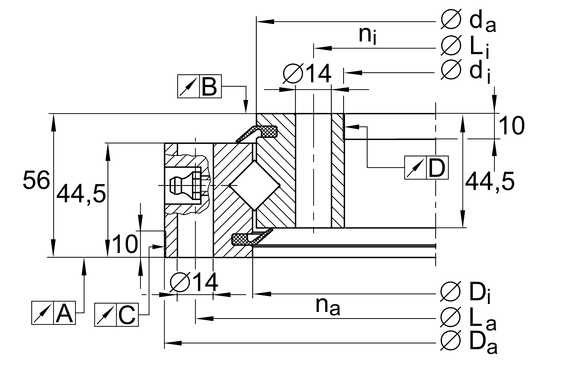

Crossed roller bearings, standard series 14, without gear teeth, lip seals on both sides
| Class description short | Slewing ring, Crossed roller bearing, without gear teeth |
| Mass netto | 27.4 kg |
| Operating temperature min. | -30.0 °C |
| Operating temperature max. | 80.0 °C |
| Basic dynamic load rating, radial (for radial load only) | 143000.0 N |
| Basic static load rating, radial (for radial load only) | 265000.0 N |
| Limiting speed | 92.0 1/min |
| REACH | REACH compliant with declarable lead proportion |
| RoHS | RoHS compliant |
| Basic dynamic load rating, axial | 200000.0 N |
| Basic static load rating, axial | 540000.0 N |
| Inner diameter outer ring | 415.0 mm |
| Brand | INA |
| Diameter centring outer ring | 484.0 mm |
| Diameter centring outer ring tolerance | -IT7 |
| Diameter centring inner ring | 344.0 mm |
| Diameter centring inner ring tolerance | IT7 |
| Fixing bore | 14.0 mm |
| Height | 56.0 mm |
| Height of inner ring | 44.5 mm |
| Inner diameter outer ring lower tolerance | 0.0 mm |
| Inner diameter outer ring upper tolerance | 0.5 mm |
| Length centering inner ring | 10.0 mm |
| Length centering outer ring | 10.0 mm |
| Maximum bearing preload | 0.03 mm |
| Max. radial load screws | 99100.0 N |
| Min. bearing preload | 0.01 mm |
| Outside diameter inner ring | 413.0 mm |
| Outside diameter inner ring lower tolerance | -0.5 mm |
| Outside diameter inner ring upper tolerance | 0.0 mm |
| PFAS | nein |
| Pitchcircle diameter fixing holes inner ring | 368.0 mm |
| Pitchcircle diameter fixing holes outer ring | 460.0 mm |
| Number of fixing holes in inner ring | 24.0 |
| Number of fixing holes in outer ring | 24.0 |
| Running accuracy A (related to the raceway) | 0.04 mm |
| Running accuracy B (related to the raceway) | 0.04 mm |
| Running accuracy C (related to the raceway) | 0.06 mm |
| Running accuracy D (related to the raceway) | 0.06 mm |
| Height outer ring | 44.5 mm |
