10 801,37 zł

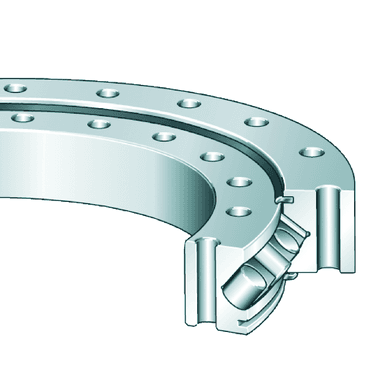

Crossed roller bearings without gear teeth, sealed on both sides
| Class description short | Slewing ring, Crossed roller bearing, without gear teeth |
| Mass netto | 6.7 kg |
| Operating temperature min. | -30.0 °C |
| Operating temperature max. | 80.0 °C |
| Basic dynamic load rating, radial (for radial load only) | 56000.0 N |
| Basic static load rating, radial (for radial load only) | 73000.0 N |
| REACH | REACH conform |
| RoHS | RoHS compliant |
| Basic dynamic load rating, axial | 79000.0 N |
| Basic static load rating, axial | 148000.0 N |
| Bore Diameter | 215.9 mm |
| Inner diameter outer ring | 264.6 mm |
| Bore diameter lower tolerance | -0.026 mm |
| Bore diameter upper tolerance | 0.0 mm |
| Brand | INA |
| Counterbore depth of fixing holes | 8.6 mm |
| Counterbore diameter of fixing holes | 13.7 mm |
| Fixing bore | 8.7 mm |
| Height | 25.4 mm |
| Height of inner ring | 25.4 mm |
| Maximum bearing preload | 0.02 mm |
| Max. radial load screws | 21000.0 N |
| Min. bearing preload | 0.0 mm |
| Outside diameter inner ring | 263.4 mm |
| Outside Diameter | 311.0 mm |
| Outside diameter lower tolerance | -0.052 mm |
| Outside diameter upper tolerance | 0.0 mm |
| PFAS | nein |
| Pitchcircle diameter fixing holes inner ring | 231.8 mm |
| Pitchcircle diameter fixing holes outer ring | 295.3 mm |
| Number of fixing holes in inner ring | 12.0 |
| Number of fixing holes in outer ring | 12.0 |
| Height outer ring | 25.4 mm |
