9009,01 zł

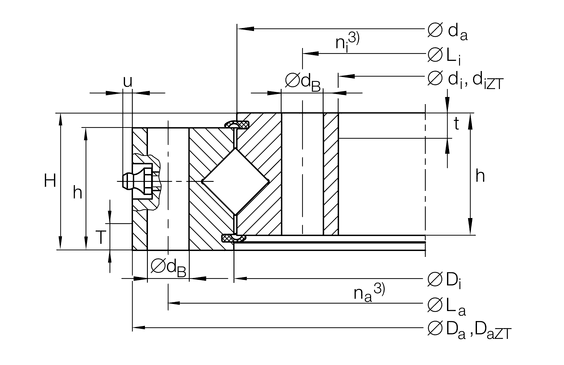

Crossed roller bearings without gear teeth, sealed on both sides
| Class description short | Slewing ring, Crossed roller bearing, without gear teeth |
| Mass netto | 6.358 kg |
| Operating temperature min. | -30.0 °C |
| Operating temperature max. | 80.0 °C |
| Basic dynamic load rating, radial (for radial load only) | 75000.0 N |
| Basic static load rating, radial (for radial load only) | 95000.0 N |
| REACH | REACH conform |
| RoHS | RoHS compliant |
| Basic dynamic load rating, axial | 105000.0 N |
| Basic static load rating, axial | 194000.0 N |
| Bore Diameter | 124.5 mm |
| Inner diameter outer ring | 180.0 mm |
| Bore diameter lower tolerance | -0.5 mm |
| Bore diameter upper tolerance | 0.5 mm |
| Brand | INA |
| Fixing bore | 11.0 mm |
| Height | 35.0 mm |
| Height of inner ring | 30.0 mm |
| Inner diameter outer ring lower tolerance | -0.2 mm |
| Inner diameter outer ring upper tolerance | 0.2 mm |
| Maximum bearing preload | 0.02 mm |
| Max. radial load screws | 33600.0 N |
| Outside diameter inner ring | 178.0 mm |
| Outside diameter inner ring lower tolerance | -0.2 mm |
| Outside diameter inner ring upper tolerance | 0.2 mm |
| Outside Diameter | 234.0 mm |
| Outside diameter lower tolerance | -0.5 mm |
| Outside diameter upper tolerance | 0.5 mm |
| PFAS | nein |
| Pitchcircle diameter fixing holes inner ring | 144.5 mm |
| Pitchcircle diameter fixing holes outer ring | 214.0 mm |
| Max. protrusion lubrication nipple | 6.0 mm |
| Number of fixing holes in inner ring | 12.0 |
| Number of fixing holes in outer ring | 12.0 |
| Height outer ring | 30.0 mm |
