9191,91 zł

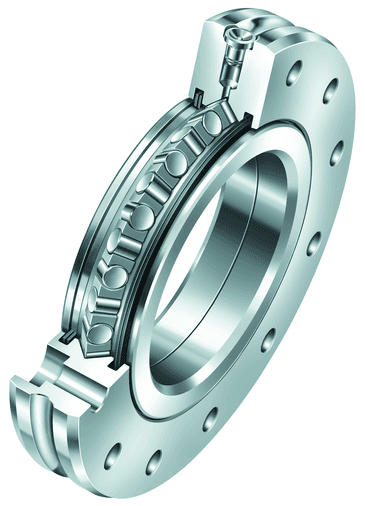

Crossed roller bearings without gear teeth, lamellar seals on both sides
| Class description short | Crossed roller bearing |
| Mass netto | 2.283 kg |
| Operating temperature min. | -30.0 °C |
| Operating temperature max. | 80.0 °C |
| Basic dynamic load rating, radial (for radial load only) | 40500.0 N |
| Basic static load rating, radial (for radial load only) | 88000.0 N |
| REACH | REACH compliant with declarable lead proportion |
| Running accuracy, axial | 0.01 mm |
| Basic dynamic load rating, axial | 57000.0 N |
| Basic static load rating, axial | 180000.0 N |

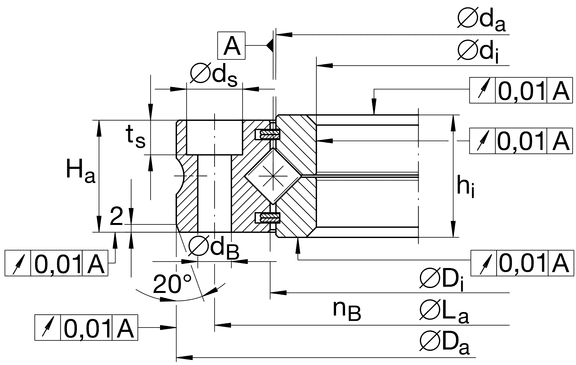

| Bore Diameter | 110.0 mm |
| Inner diameter outer ring | 127.5 mm |
| Bore diameter lower tolerance | -0.006 mm |
| Bore diameter upper tolerance | 0.016 mm |
| Brand | INA |
| Countersunk depth of fixing holes | 8.5 mm |
| Countersunk diameter of fixing holes | 15.0 mm |
| Diameter fixing hole outer ring | 9.0 mm |
| Height inner ring | 23.0 mm |
| Limiting speed for grease lubrication with normal clearance | 602.0 1/min |
| Limiting speed for grease lubrication with preload | 301.0 1/min |
| Outer diameter inner ring | 126.5 mm |
| Max. radial load screws (frictional contact) | 28200.0 N |
| Outside Diameter | 180.0 mm |
| Outside diameter lower tolerance | -0.025 mm |
| Outside diameter upper tolerance | 0.0 mm |
| PFAS | nein |
| Pitch circle diameter fixing holes | 160.0 mm |
| Quantity of fixed holes evenly around the circumfence | 16.0 |
| Running accuracy, radial | 0.01 mm |
| Width outer ring | 22.0 mm |
