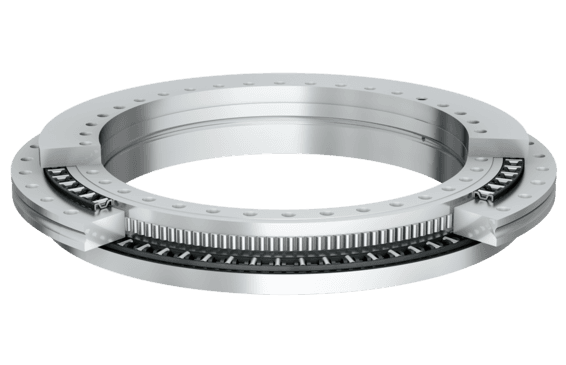

INA
| Średnica wewnętrzna d | 80mm |
|---|---|
| Średnica zewnętrzna D | 146mm |
| Obciążenie dynamiczne C | 44 000N |
| Obciążenie statyczne C₀ | 98 000N |
| Prędkość graniczna | 350 1/min |
| Masa | 2,179kg |
| Koszyk | TV |
| Temperatura pracy | -30…120 °C |
| Axial rigidity of rolling element set | 4 000N/µm |
|---|---|
| Axial and radial runout, measurement standard; Measured on mounted bearing, with ideal adjacent construction. | 3µm |
| Axial rigidity of bearing position | 1 600N/µm |
| Basic dynamic load rating, axial | 38 000N |
| Basic static load rating, axial | 158 000N |
| Bearing friction torque at 5 1/min | 3Nm |
| Bore diameter lower tolerance | -0,009mm |
7183,10 złnetto
+ VAT 23% = 8835,21 zł brutto
Dobierz 9 szt., żeby zejść do 6823,95 zł
| od 1 szt. | — | 7183,10 zł |
| od 10 szt. | −5% | 6823,95 zł |
| od 50 szt. | −8% | 6608,45 zł |
| od 250 szt. | −12% | 6321,13 zł |
Cena schodzi automatycznie po przekroczeniu progu w koszyku.
Faktura z terminem 30 dni · dostawa kurierem albo paletowa
| Bore diameter upper tolerance |
|---|
| 0mm |
| Counterbore depth of fixing holes | 4mm |
|---|
| Counterbore diameter of fixing holes | 10mm |
|---|
| Fixing holes diameter inner ring | 5,6mm |
|---|
| Fixing holes diameter outer ring | 4,6mm |
|---|
| Height contact face outer ring | 23,35mm |
|---|
| Height contact face outerring H1 lower tolerance | -0,025mm |
|---|
| Height contact face outerring H1 upper tolerance | 0,025mm |
|---|
| Height contact face outer ring | 11,65mm |
|---|
| Height contact face outerring H2 lower tolerance | -0,2mm |
|---|
| Height contact face outerring H2 upper tolerance | 0,2mm |
|---|
| Height | 35mm |
|---|
| Angular measuring system integrated | No |
|---|
| Maximum diameter inner ring | 130mm |
|---|
| Outside diameter lower tolerance | -0,011mm |
|---|
| Outside diameter upper tolerance | 0mm |
|---|
| Pitch quantity | 12 |
|---|
| Pitch separation angle | 30° |
|---|
| Pitch circle diameter fixing holes in inner ring | 92mm |
|---|
| Pitch circle diameter fixing holes in outer ring | 138mm |
|---|
| Quantity of fixing holes inner ring | 10 |
|---|
| Quantity of fixing holes outer ring | 12 |
|---|
| Quantity of retaining screws | 2 |
|---|
| Radial rigidity of rolling element set | 2 600N/µm |
|---|
| Radial rigidity of bearing position | 1 800N/µm |
|---|
| Screw tightening torque | 8,5Nm |
|---|
| Tilting rigidity of rolling element set | 6 300Nm/mrad |
|---|
| Tilting rigidity of bearing position | 2 500Nm/mrad |
|---|
| Width of outer ring | 12mm |
|---|
