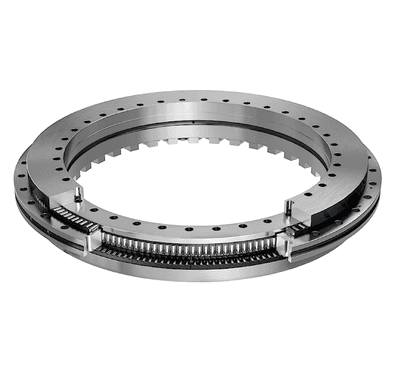

Axial/radial bearings, double direction, for screw mounting
| Class description short | Axial/radial roller bearing |
| Mass netto | 373.0 kg |
| Operating temperature min. | -30.0 °C |
| Operating temperature max. | 120.0 °C |
| Basic dynamic load rating, radial | 580000.0 N |
| Basic static load rating, radial | 2050000.0 N |
| Limiting speed | 40.0 1/min |
| REACH | REACH conform |
| RoHS | RoHS compliant |
| Axial rigidity of rolling element set | 74900.0 N/µm |
| Axial and radial runout, measurement standard; Measured on mounted bearing, with ideal adjacent construction. | 12.0 µm |
| Axial rigidity of bearing position | 72800.0 N/µm |
| Basic dynamic load rating, axial | 1140000.0 N |
| Basic static load rating, axial | 10300000.0 N |
| Bearing friction torque at 5 1/min | 250.0 Nm |
| Bore diameter | 1030.0 mm |
| Bore diameter lower tolerance | -0.063 mm |
| Bore diameter upper tolerance | 0.0 mm |
| Brand | INA |
| Counterbore depth of fixing holes | 17.0 mm |
| Counterbore diameter of fixing holes | 26.0 mm |
| Fixing holes diameter inner ring | 18.0 mm |
| Fixing holes diameter outer ring | 18.0 mm |
| Height contact face outer ring | 92.5 mm |
| Height contact face outerring H1 lower tolerance | -0.3 mm |
| Height contact face outerring H1 upper tolerance | 0.3 mm |
| Height contact face outer ring | 52.5 mm |
| Height contact face outerring H2 lower tolerance | -0.3 mm |
| Height contact face outerring H2 upper tolerance | 0.3 mm |
| Height | 145.0 mm |
| Angular measuring system integrated | No |
| Marketing category | XL |
| Maximum diameter inner ring | 1215.0 mm |
| Outside diameter | 1300.0 mm |
| Outside diameter lower tolerance | -0.08 mm |
| Outside diameter upper tolerance | 0.0 mm |
| PFAS | nein |
| Pitch quantity | 72.0 |
| Pitch separation angle | 5.0 ° |
| Pitch circle diameter fixing holes in inner ring | 1075.0 mm |
| Pitch circle diameter fixing holes in outer ring | 1255.0 mm |
| Quantity of fixing holes inner ring | 70.0 |
| Quantity of fixing holes outer ring | 66.0 |
| Quantity of retaining screws | 2.0 |
| Quantity of threaded extraction hole | 6.0 |
| Radial rigidity of rolling element set | 14200.0 N/µm |
| Radial rigidity of bearing position | 21300.0 N/µm |
| Screw tightening torque | 284.0 Nm |
| Threaded extraction hole | M16 |
| Tilting rigidity of rolling element set | 11165000.0 Nm/mrad |
| Tilting rigidity of bearing position | 8640000.0 Nm/mrad |
| Width of outer ring | 40.0 mm |
