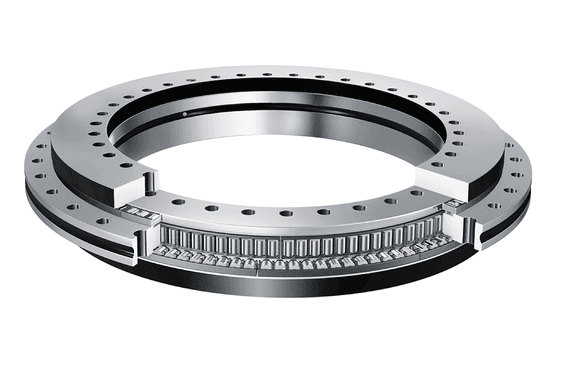

Axial/radial bearings YRTS, double direction, for screw mounting, for higher speeds
| Class description short | Axial/radial roller bearing |
| Mass netto | 24.765 kg |
| Operating temperature min. | -30.0 °C |
| Operating temperature max. | 120.0 °C |
| Basic dynamic load rating, radial | 109000.0 N |
| Basic static load rating, radial | 320000.0 N |
| Limiting speed | 760.0 1/min |
| REACH | REACH conform |
| RoHS | RoHS compliant |
| Axial rigidity of rolling element set | 19900.0 N/µm |
| Axial and radial runout, measurement standard; Measured on mounted bearing, with ideal adjacent construction. | 6.0 µm |
| Axial rigidity of bearing position | 11900.0 N/µm |
| Basic dynamic load rating, axial | 191000.0 N |
| Basic static load rating, axial | 1260000.0 N |

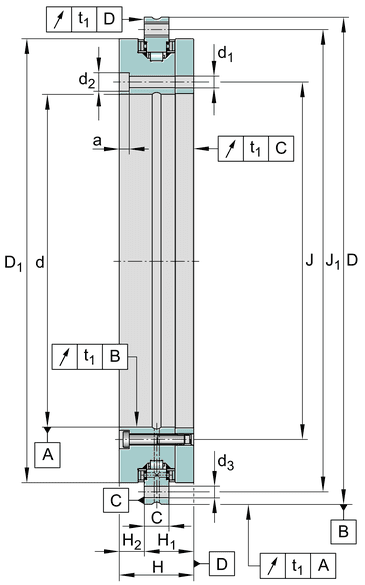

| Bore diameter | 325.0 mm |
| Bore diameter lower tolerance | -0.023 mm |
| Bore diameter upper tolerance | 0.0 mm |
| Brand | INA |

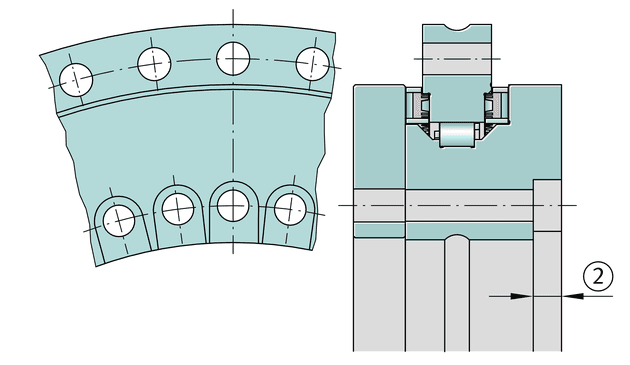

| Counterbore depth of fixing holes | 8.2 mm |
| Counterbore diameter of fixing holes | 15.0 mm |
| Fixing holes diameter inner ring | 9.3 mm |
| Fixing holes diameter outer ring | 9.3 mm |
| Height contact face outer ring | 40.0 mm |
| Height contact face outerring H1 lower tolerance | -0.07 mm |
| Height contact face outerring H1 upper tolerance | 0.06 mm |
| Height contact face outer ring | 20.0 mm |
| Height | 60.0 mm |
| Angular measuring system integrated | No |
| Mass moment of inertia for rotating inner ring | 4506.0 kg*cm² |
| Mass moment of inertia for rotating outer ring | 2489.0 kg*cm² |
| Maximum diameter inner ring | 415.1 mm |
| Outside diameter | 450.0 mm |
| Outside diameter lower tolerance | -0.023 mm |
| Outside diameter upper tolerance | 0.0 mm |
| PFAS | nein |

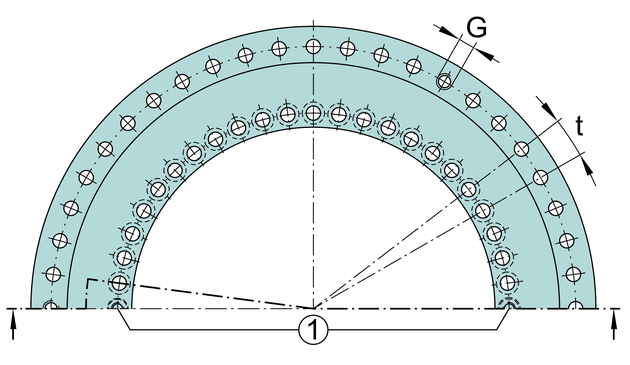

| Pitch quantity | 36.0 |
| Pitch separation angle | 10.0 ° |
| Pitch circle diameter fixing holes in inner ring | 342.0 mm |
| Pitch circle diameter fixing holes in outer ring | 430.0 mm |
| Quantity of fixing holes inner ring | 34.0 |
| Quantity of fixing holes outer ring | 33.0 |
| Quantity of retaining screws | 2.0 |
| Quantity of threaded extraction hole | 3.0 |
| Radial rigidity of rolling element set | 7100.0 N/µm |
| Radial rigidity of bearing position | 7200.0 N/µm |
| Screw tightening torque | 34.0 Nm |
| Threaded extraction hole | M12 |
| Tilting rigidity of rolling element set | 350000.0 Nm/mrad |
| Tilting rigidity of bearing position | 207000.0 Nm/mrad |
| Width of outer ring | 20.0 mm |
