36 850,92 zł

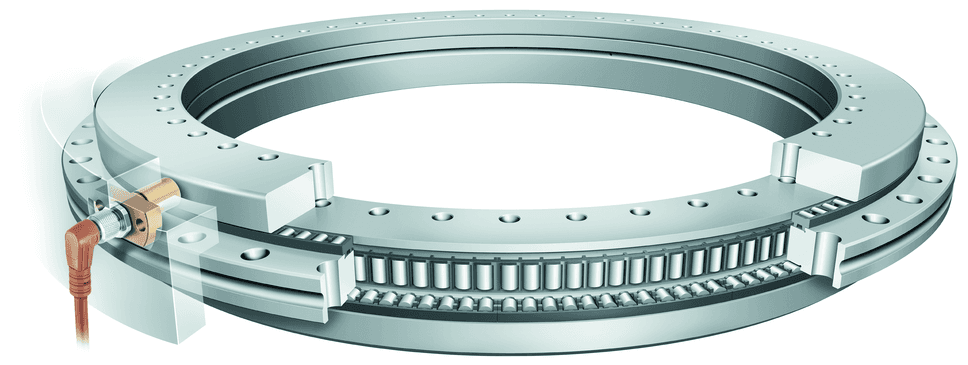

Axial/radial bearings, double direction, screw mounting, for higher speeds, with integrated angular measuring system
| Class description short | Axial/radial roller bearing |
| Mass netto | 8.8 kg |
| Operating temperature min. | -30.0 °C |
| Operating temperature max. | 120.0 °C |
| Basic dynamic load rating, radial | 94000.0 N |
| Basic static load rating, radial | 226000.0 N |
| Limiting speed | 1160.0 1/min |
| REACH | REACH conform |
| RoHS | RoHS compliant |
| Axial rigidity of rolling element set | 13600.0 N/µm |
| Axial and radial runout, measurement standard; Measured on mounted bearing, with ideal adjacent construction. | 4.0 µm |
| Axial rigidity of bearing position | 7200.0 N/µm |
| Basic dynamic load rating, axial | 155000.0 N |
| Basic static load rating, axial | 840000.0 N |
| Bore diameter | 200.0 mm |
| Bore diameter lower tolerance | -0.015 mm |
| Bore diameter upper tolerance | 0.0 mm |
| Brand | INA |
| Counterbore depth of fixing holes | 6.2 mm |
| Counterbore diameter of fixing holes | 11.0 mm |
| Fixing holes diameter inner ring | 7.0 mm |
| Fixing holes diameter outer ring | 7.0 mm |
| Height contact face outer ring | 30.0 mm |
| Height contact face outerring H1 lower tolerance | -0.06 mm |
| Height contact face outerring H1 upper tolerance | 0.04 mm |
| Height contact face outer ring | 15.0 mm |
| Height | 45.0 mm |
| Height shaft washer | 10.0 mm |
| Angular measuring system integrated | M |
| Mass moment of inertia for rotating inner ring | 667.0 kg*cm² |
| Mass moment of inertia for rotating outer ring | 435.0 kg*cm² |
| Maximum diameter inner ring | 274.4 mm |
| Outside diameter | 300.0 mm |
| Outside diameter lower tolerance | -0.018 mm |
| Outside diameter upper tolerance | 0.0 mm |
| PFAS | nein |
| Pitch quantity | 48.0 |
| Pitch separation angle | 7.5 ° |
| Pitch circle diameter fixing holes in inner ring | 215.0 mm |
| Pitch circle diameter fixing holes in outer ring | 285.0 mm |
| Quantity of fixing holes inner ring | 46.0 |
| Quantity of fixing holes outer ring | 45.0 |
| Quantity of retaining screws | 2.0 |
| Quantity of threaded extraction hole | 3.0 |
| Radial rigidity of rolling element set | 3900.0 N/µm |
| Radial rigidity of bearing position | 4800.0 N/µm |
| Diameter of dimensional scale on shaft locating washer | 271.12 mm |
| Screw tightening torque | 14.0 Nm |
| Threaded extraction hole | M8 |
| Tilting rigidity of rolling element set | 101000.0 Nm/mrad |
| Tilting rigidity of bearing position | 52200.0 Nm/mrad |
| Width of outer ring | 15.0 mm |
