29 171,54 zł

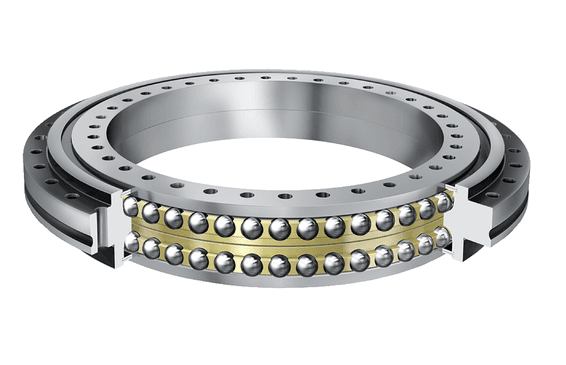

Axial angular contact ball bearings ZKLDF, double direction, for screw mounting, sealing shields on both sides
| Class description short | Axial angular contact ball bearing |
| Mass netto | 9.12 kg |
| Operating temperature min. | -30.0 °C |
| Operating temperature max. | 120.0 °C |
| Limiting speed | 3200.0 1/min |
| REACH | REACH compliant with declarable lead proportion |
| RoHS | RoHS compliant |
| Axial rigidity of rolling element set | 3700.0 N/µm |
| Axial and radial runout, measurement standard; Measured on mounted bearing, with ideal adjacent construction. | 4.0 µm |
| Axial rigidity of bearing position | 2500.0 N/µm |
| Basic dynamic load rating, axial | 121000.0 N |
| Basic static load rating, axial | 610000.0 N |

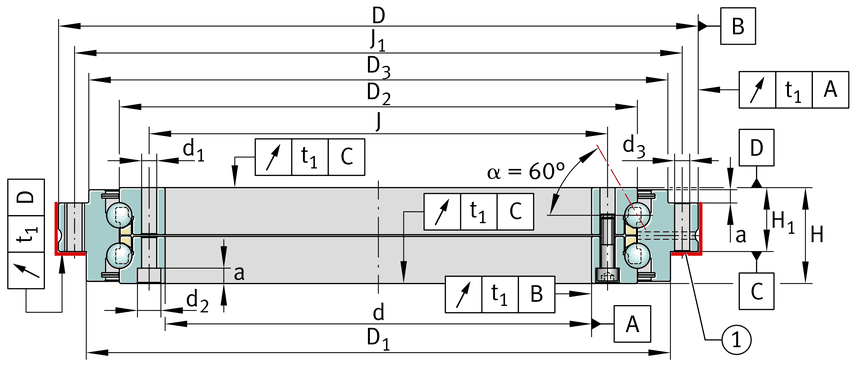

| Bore diameter | 200.0 mm |
| Bore diameter lower tolerance | -0.015 mm |
| Bore diameter upper tolerance | 0.0 mm |
| Brand | INA |
| Counterbore depth of fixing holes | 6.2 mm |
| Counterbore diameter of fixing holes | 11.0 mm |
| Fatigue load limit, axial | 17900.0 N |
| Fixing holes diameter inner ring | 7.0 mm |
| Fixing holes diameter outer ring | 7.0 mm |
| Flange diameter | 300.0 mm |
| Flange diameter lower tolerance | -0.018 mm |
| Flange diameter upper tolerance | 0.0 mm |
| Height contact face outer ring | 30.0 mm |
| Height contact face outerring H1 lower tolerance | -0.175 mm |
| Height contact face outerring H1 upper tolerance | 0.175 mm |
| Height | 45.0 mm |
| Outside diameter D1 | 274.0 mm |
| Outside diameter D3 | 271.0 mm |
| PFAS | nein |

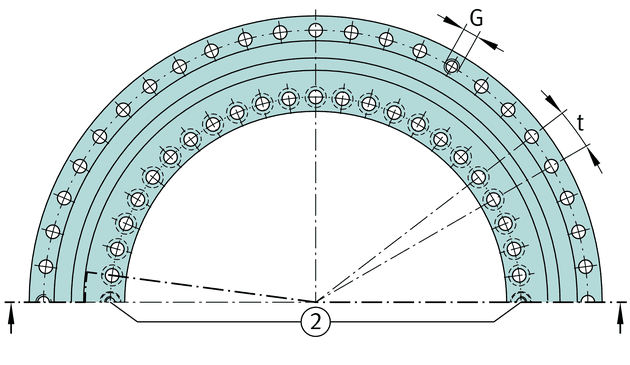

| Pitch quantity | 48.0 |
| Pitch separation angle | 7.5 ° |
| Pitch circle diameter fixing holes in inner ring | 215.0 mm |
| Pitch circle diameter fixing holes in outer ring | 285.0 mm |
| Quantity of fixing holes inner ring | 46.0 |
| Quantity of fixing holes outer ring | 45.0 |
| Quantity of retaining screws | 2.0 |
| Quantity of threaded extraction hole | 3.0 |
| Radial rigidity of rolling element set | 600.0 N/µm |
| Radial rigidity of bearing position | 600.0 N/µm |
| Rib diameter inner ring | 243.0 mm |
| Screw tightening torque | 14.0 Nm |
| Threaded extraction hole | M8 |
| Tilting rigidity of rolling element set | 26000.0 Nm/mrad |
| Tilting rigidity of bearing position | 17500.0 Nm/mrad |
| Generation | B |
