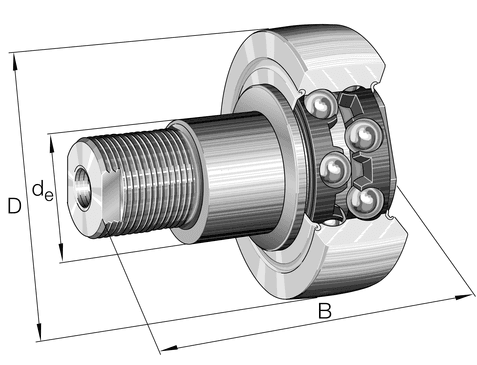

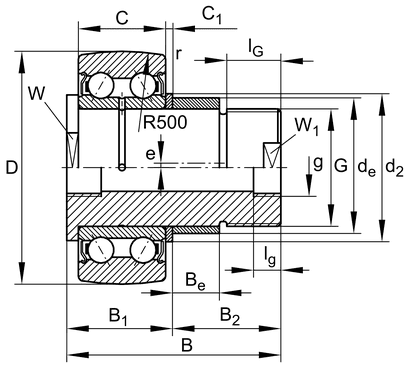

Stud type track rollers ZLE52..-2Z, double row self-retaining angular contact ball bearings with particularly thick-walled outer ring, ball and cage assembly, eccentric collar and with a solid, long roller stud with external thread, axial guidance of outer ring is provided by the balls, sealing shield on both sides, mounting aid on the face and bolt sides: spanner flat, relubricatable
| Class description short | Stud type track roller |
| Mass netto | 0.145 kg |
| Width | 65.5 mm |
| REACH | REACH conform |
| RoHS | RoHS compliant |
| Basic dynamic load rating, radial | 7900.0 N |
| Basic static load rating, radial | 5300.0 N |
| Bolt/stud length effectively | 45.0 mm |
| Brand | INA |
| Diameter of eccentric | 18.0 mm |
| Eccentricity | 1.0 mm |
| Fatigue load limit, radial | 270.0 N |
| Maximum witdh of thrust washer | 20.5 mm |
| Minimum chamfer dimension | 0.6 mm |
| Minimum thread length | 24.0 mm |
| Outside diameter | 35.0 mm |
| PFAS | nein |
| Permissible dynamic load outer ring, radial | 4800.0 N |
| Protrusion outer ring to thrust washer | 2.0 mm |
| Radius of outer ring outside profile | 500.0 mm |
| Speed on permanent grease lubrication | 11100.0 1/min |
| Stop diameter of thrust washer | 25.0 mm |
| Thread | M12X1,5 |
| Thread inside | M6 |
| Thread length (inner) | 6.0 mm |
| Tightening torque nut | 30.0 Nm |
| Width, eccentric | 18.0 mm |
| Width of flats | 9.0 mm |
| Width of flats | 15.0 mm |
| Width, outer ring | 15.9 mm |
| Assembling aid head | SF |
| Assembling aid stud | SF |
| Outer ring profile | R500 |
| Relubrication | KS |
| Sealing | 2Z |
