397,66 zł

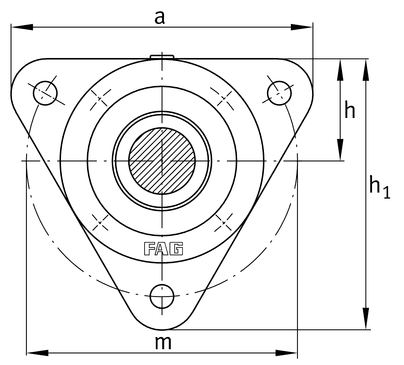

Flanged housing for self-aligning ball bearing 112 with wide inner-ring, felt seal, grease lubrication
| Class description short | Flanged housing |
| Mass netto | 1.35 kg |
| Operating temperature min. | -20.0 °C |
| Operating temperature max. | 100.0 °C |
| REACH | REACH conform |
| RoHS | RoHS compliant |
| Brand | FAG |
| Connection thread for lubrication | M10x1 |
| Distance shaft axis | 44.0 mm |
| Flange width | 130.0 mm |
| Bearing sort | SABB |
| Bearing split | No |
| Housing opening | durchgehend |
| Distance between mounting bolt centerlines (length) | 116.0 mm |
| Height bearing seat | 44.0 mm |
| Housing height | 117.0 mm |
| Housing material | GG |
| Housing shape | Dreieck |
| Housing sort | Flanged |
| Housing split | Nein |
| Inner diameter bearing | 30.0 mm |
| Housing length | 130.0 mm |
| Location on shaft | Fix |
| Housing qty bolts | 3 |
| Outer diameter bearing | 62.0 mm |
| Housing width | 49.0 mm |
| Height flange | 117.0 mm |
| Outside diameter bearing | 62.0 mm |
| PFAS | nein |
| Pitch circle diameter fixing holes | 116.0 mm |
| Shaft diameter | 30.0 mm |
| Size of fixing screws | M10 |
| Thickness of flange | 12.0 mm |
| Total width with cover | 49.0 mm |
