347,84 zł

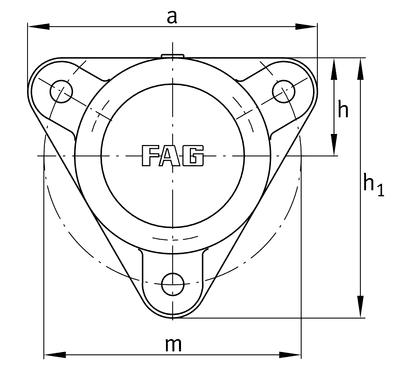

Flanged housing for various bearing types, wide version with conical bore and clamping sleeve, continuous shaft
| Class description short | Flanged housing |
| Mass netto | 1.545 kg |
| REACH | REACH compliant with declarable lead proportion |
| RoHS | RoHS compliant with declarable substances |
| Brand | FAG |
| Connection thread for lubrication | M10x1 |
| Distance flange to bearing seat | 16.0 mm |
| Distance shaft axis | 44.0 mm |
| Flange width | 130.0 mm |
| Height flange | 117.0 mm |
| Number of fastening holes | 3.0 |
| Outside diameter bearing | 62.0 mm |
| PFAS | nein |
| Pich circle diameter fixing holes | 116.0 mm |
| Shaft diameter | 25.0 mm |
| Size of fixing screws | M10 |
| Thickness of flange | 12.0 mm |
| Total width with lid g2 | 57.0 mm |
