117,59 zł

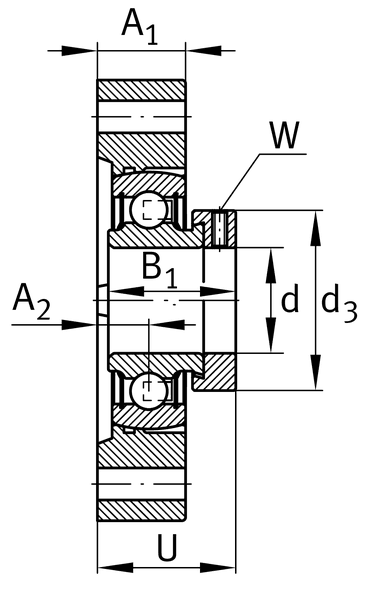

Housing units FLCTE, two-bolt flanged housing units, cast iron, eccentric locking collar, P seals, without relubrication facility
| Class description short | Flanged housing unit |
| Mass netto | 0.3 kg |
| Operating temperature min. | -20.0 °C |
| Operating temperature max. | 120.0 °C |
| Basic dynamic load rating, radial | 10100.0 N |
| Basic static load rating, radial | 4750.0 N |
| REACH | REACH conform |
| RoHS | RoHS compliant |
| Bearing designation | RAE17-XL-NPP-B |
| Bore diameter | 17.0 mm |
| Brand | INA |
| Distance fixing bore | 63.5 mm |
| Distance raceway | 8.4 mm |
| Fatigue load limit, radial | 248.0 N |
| Fixing bore | 6.6 mm |
| Flange width | 58.7 mm |
| Bearing in kit | RAE17-XL-NPP-B |
| Bearing sealed | Yes |
| Bearing sort | RIBB |
| Bearing split | No |
| Housing opening | durchgehend |
| Distance between mounting bolt centerlines (length) | 63.5 mm |
| Height bearing seat | 40.5 mm |
| Housing height | 81.0 mm |
| Housing in kit | FLCTE17-XL |
| Housing material | GG |
| Housing shape | Oval |
| Housing sort | Flanged |
| Housing split | Nein |
| Inner diameter bearing | 17.0 mm |
| Housing length | 58.7 mm |
| Location on shaft | Acc |
| Housing qty bolts | 2 |
| Outer diameter bearing | 40.0 mm |
| Sealing type | LIP |
| Housing width | 30.5 mm |
| Basic dynamic load rating | 10100.0 N |
| Basic static load rating | 4750.0 N |
| Height flange | 81.0 mm |
| Housing | LCTE03 |
| Locking collar total width | 28.6 mm |
| Marketing category | XL |
| Material | GG |
| Number of housings | 1.0 |
| Number of screwing holes | 2.0 |
| Outside diameter eccentric locking collar | 28.4 mm |
| PFAS | nein |
| Thickness of flange | 15.0 mm |
| Total height unit | 30.5 mm |
| Width across flats | 3.0 mm |
