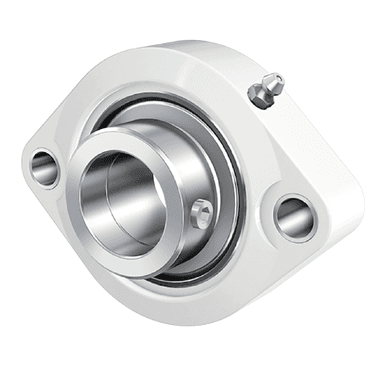

Flanged housing units, FD design
| Class description short | Flanged housing unit |
| Mass netto | 0.29 kg |
| Operating temperature min. | -30.0 °C |
| Operating temperature max. | 100.0 °C |
| Basic dynamic load rating, radial | 14020.0 N |
| Basic static load rating, radial | 7880.0 N |
| REACH | REACH conform |
| RoHS | RoHS compliant |
| Bearing designation | GE25-KRR-B-FA107-VA-FD |
| Bore diameter | 25.0 mm |
| Brand | INA |
| Connection thread for lubrication | 1/4"-28 UNF |
| Distance raceway to locking collar | 23.5 mm |
| Distance fixing bore | 76.2 mm |
| Distance housing centre to cap end | 33.5 mm |
| Distance raceway | 9.9 mm |
| Fatigue load limit, radial | 335.0 N |
| Fixing bore | 9.2 mm |
| Flange width | 91.0 mm |
| Bearing in kit | GE25-KRR-B-FA107-VA-FD |
| Bearing sealed | Yes |
| Bearing sort | RIBB |
| Bearing split | No |
| Housing opening | combi |
| Distance between mounting bolt centerlines (length) | 76.2 mm |
| Housing height | 97.0 mm |
| Housing in kit | GLCTE25-TV-VA-FD |
| Housing material | PL |
| Housing shape | Oval |
| Housing sort | Flanged |
| Housing split | Nein |
| Inner diameter bearing | 25.0 mm |
| Housing length | 71.0 mm |
| Location on shaft | Acc |
| Housing qty bolts | 2 |
| Outer diameter bearing | 52.0 mm |
| Sealing type | LIP |
| Housing width | 33.4 mm |
| Basic dynamic load rating | 14020.0 N |
| Basic static load rating | 7880.0 N |
| Height flange | 97.0 mm |
| Housing | GEH.GLCTE05-TV-WHT |
| Load carrying capacity (housing) | 9400.0 N |
| Locking collar total width | 31.0 mm |
| Material | TV-FD |
| Outside diameter eccentric locking collar | 38.1 mm |
| PFAS | nein |
| Protecting cap | KASK05-S-G-WHT |
| Thickness of flange | 18.4 mm |
| Total height unit | 33.4 mm |
| Width across flats | 3.0 mm |
| Corrosion resistant bearing | VA |
| Special material | TV |
