178,84 zł

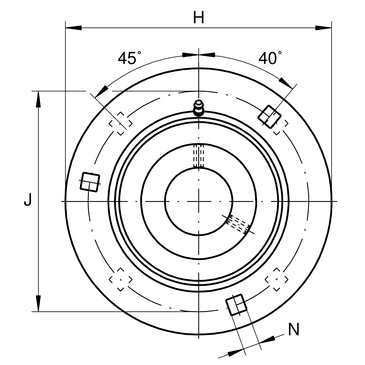

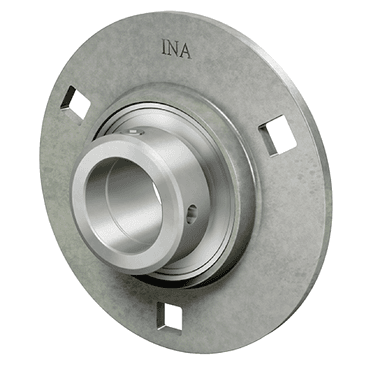

Housing units GRA, three/four-bolt flanged housing units, sheet steel, eccentric locking collar, P seals
| Class description short | Flanged housing unit |
| Mass netto | 0.85 kg |
| Operating temperature min. | -20.0 °C |
| Operating temperature max. | 120.0 °C |
| Basic dynamic load rating, radial | 25500.0 N |
| Basic static load rating, radial | 15300.0 N |
| REACH | REACH conform |
| RoHS | RoHS compliant |
| Bearing designation | GRAE35-XL-NPP-B |
| Bore diameter | 35.0 mm |
| Brand | INA |
| Fatigue load limit, radial | 650.0 N |
| Fixing | EXZ |
| Fixing square | 10.5 mm |
| Flange width | 122.0 mm |
| Bearing in kit | GRAE35-XL-NPP-B |
| Bearing sealed | Yes |
| Bearing sort | RIBB |
| Bearing split | No |
| Housing opening | durchgehend |
| Distance between mounting bolt centerlines (length) | 100.0 mm |
| Height bearing seat | 61.0 mm |
| Housing height | 122.0 mm |
| Housing in kit | GRA35-XL |
| Housing material | SB |
| Housing shape | Rund |
| Housing sort | Flanged |
| Housing split | Nein |
| Inner diameter bearing | 35.0 mm |
| Housing length | 122.0 mm |
| Location on shaft | Acc |
| Housing qty bolts | 3-4 |
| Outer diameter bearing | 72.0 mm |
| Sealing type | LIP |
| Housing width | 39.0 mm |
| Basic dynamic load rating | 27500.0 N |
| Basic static load rating | 15300.0 N |
| Height flange | 122.0 mm |
| Height housing | 9.5 mm |
| Housing (Part 2) | FLAN72-MSA |
| Housing | FLAN72-MSB |
| Load carrying capacity (housing) | 6400.0 N |
| Locking collar total width | 39.0 mm |
| Marketing category | XL |
| Material | Steel sheet |
| Number of housings 2 | 1.0 |
| Number of housings | 1.0 |
| Number of screwing holes | 3.0 |
| Number of screws | 3.0 |
| Outside diameter eccentric locking collar | 37.5 mm |
| Outside diameter locking collar/locknut | 55.0 mm |
| PFAS | nein |
| Pitch circle diameter (holes) | 100.0 mm |
| Shoulder diameter housing | 81.0 mm |
| Thickness of flange | 2.5 mm |
| Total height unit | 32.0 mm |
