266,42 zł

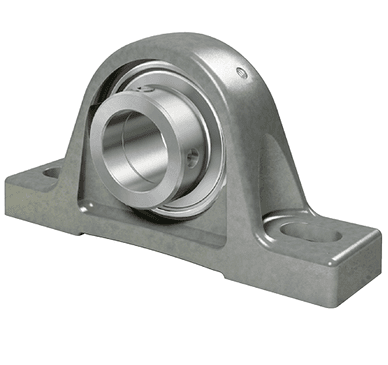

Plummer block housing units LASE, cast iron housing, radial insert ball bearing with eccentric locking collar, L seals
| Class description short | Plummer block housing unit |
| Mass netto | 1.649 kg |
| Operating temperature min. | -40.0 °C |
| Operating temperature max. | 180.0 °C |
| REACH | REACH conform |
| RoHS | RoHS compliant |
| Bearing designation | GE35-XL-KLL-B |
| Bore diameter | 35.0 mm |
| Brand | INA |
| Connection thread for lubrication | M6 |
| Distance of raceway to locking collar | 32.5 mm |
| Distance fixing bore | 126.0 mm |
| Distance shaft axis | 47.6 mm |
| Bearing in kit | GE35-XL-KLL-B |
| Bearing sealed | Yes |
| Bearing sort | RIBB |
| Bearing split | No |
| Housing opening | combi |
| Distance between mounting bolt centerlines (length) | 126.0 mm |
| Height bearing seat | 47.6 mm |
| Housing height | 93.0 mm |
| Housing in kit | LASE35-XL-N |
| Housing material | GG |
| Housing shape | Fuss_lang |
| Housing sort | Plummer |
| Housing split | Nein |
| Inner diameter bearing | 35.0 mm |
| Housing length | 163.0 mm |
| Location on shaft | Acc |
| Housing qty bolts | 2 |
| Outer diameter bearing | 72.0 mm |
| Sealing type | LIP |
| Housing width | 51.3 mm |
| Basic dynamic load rating | 27500.0 N |
| Basic static load rating | 15300.0 N |
| Height | 93.0 mm |
| Height (base) | 19.0 mm |
| Housing | GEHASE07-GG-N-FA125.1 |
| Length (slot) | 21.0 mm |
| Length total | 163.0 mm |
| Locking collar total width | 51.3 mm |
| Marketing category | XL |
| Material | GG |
| PFAS | nein |
| Protecting cap | KASK07 |
| Width (base) | 45.0 mm |
| Width (head) | 27.0 mm |
| Width (slot) | 14.0 mm |
| Groove | N |
