21 048,87 zł

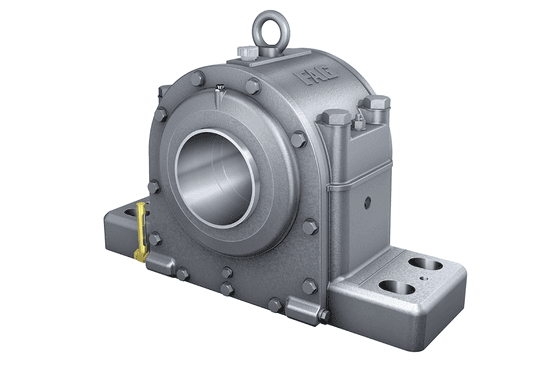

Plummer block housing, split, for spherical roller bearings, oil-lubrication
| Class description short | Plummer block housing |
| Mass netto | 37.0 kg |
| Operating temperature min. | -20.0 °C |
| Operating temperature max. | 100.0 °C |
| Bore distance width | 80.0 mm |
| Brand | FAG |
| Distance fixing bore | 310.0 mm |
| Center heigth | 125.0 mm |
| Bearing sort | SRB |
| Bearing split | No |
| Distance between mounting bolt centerlines (width) | 80.0 mm |
| Housing opening | durchgehend |
| Distance between mounting bolt centerlines (length) | 310.0 mm |
| Height bearing seat | 125.0 mm |
| Housing height | 220.0 mm |
| Housing material | GG |
| Housing shape | Fuss_lang |
| Housing sort | Plummer |
| Housing split | Ja |
| Inner diameter bearing | 60.0 mm |
| Housing length | 370.0 mm |
| Location on shaft | Fix |
| Housing qty bolts | 4 |
| Outer diameter bearing | 130.0 mm |
| Housing width | 220.0 mm |
| Height | 220.0 mm |
| Heigth base | 45.0 mm |
| Length slot | 30.0 mm |
| Location collar width | 55.0 mm |
| Maximum height oil level | 65.0 mm |
| Minimum height oil level | 50.0 mm |
| Oil quantity first filling | 1.0 l |
| Outside diameter bearing | 130.0 mm |
| PFAS | nein |
| Shaft diameter | 60.0 mm |
| Shaft diameter shoulder | 65.0 mm |
| Size of fixing screws | M16 |
| Thread shaft nut | M60X2 |
| Total width | 220.0 mm |
| Width base | 130.0 mm |
| Width housing body | 140.0 mm |
| Width slot | 20.0 mm |
| Length base | 370.0 mm |
