143,42 zł

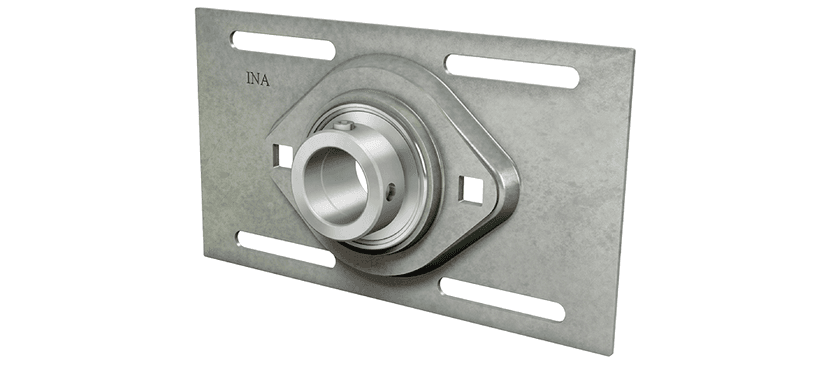

Take-up housing units MSTU, sheet steel housing, radial insert ball bearing with eccentric locking collar, P seals, with relubrication facility
| Class description short | Take-up housing unit |
| Mass netto | 0.59 kg |
| Operating temperature min. | -20.0 °C |
| Operating temperature max. | 120.0 °C |
| REACH | REACH_YES_7439-92-1! |
| Bearing designation | RAE25-XL-NPP-B |
| Bore diameter | 25.0 mm |
| Brand | INA |
| Distance fixing bore | 80.2 mm |
| Distance raceway | 10.3 mm |
| Bearing in kit | RAE25-XL-NPP-B |
| Bearing sealed | Yes |
| Bearing sort | RIBB |
| Bearing split | No |

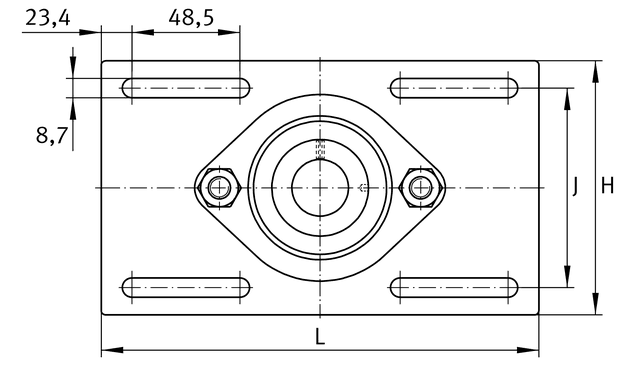

| Distance between mounting bolt centerlines (width) | 80.2 mm |
| Housing opening | durchgehend |
| Distance between mounting bolt centerlines (length) | 59.4 mm |
| Height bearing seat | 52.4 mm |
| Housing height | 104.8 mm |
| Housing in kit | MSTU25-XL |
| Housing material | SB |
| Housing shape | Viereck |
| Housing sort | Take-up |
| Housing split | Nein |
| Inner diameter bearing | 25.0 mm |
| Housing length | 203.2 mm |
| Location on shaft | Acc |
| Housing qty bolts | 4 |
| Outer diameter bearing | 52.0 mm |
| Sealing type | LIP |
| Housing width | 33.8 mm |
| Basic dynamic load rating | 14900.0 N |
| Basic static load rating | 7800.0 N |
| Height flange | 104.8 mm |
| Height housing | 19.0 mm |
| Housing | GEH52-MSTU |
| Length total | 203.2 mm |
| Load carrying capacity (housing) | 3900.0 N |
| Marketing category | XL |
| Material | Steel sheet |
| PFAS | nein |
| Thickness of flange | 2.0 mm |
| Total height unit | 33.8 mm |
