170,97 zł

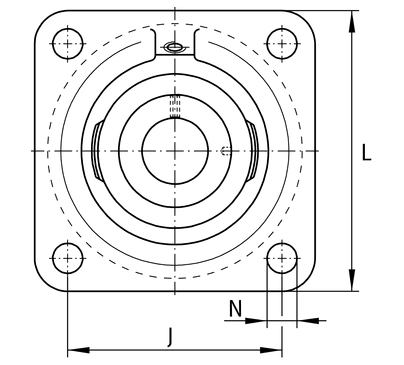

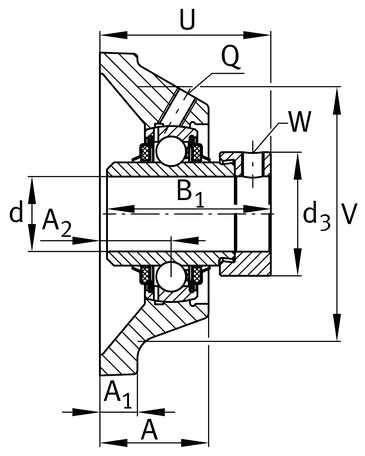

Housing units TCJ, four-bolt flanged housing units, cast iron, eccentric locking collar, T seals
| Class description short | Flanged housing unit |
| Mass netto | 0.62 kg |
| Operating temperature min. | -20.0 °C |
| Operating temperature max. | 120.0 °C |
| Basic dynamic load rating, radial | 13600.0 N |
| Basic static load rating, radial | 6600.0 N |
| REACH | REACH compliant with declarable lead proportion |
| RoHS | RoHS compliant with declarable substances |
| Bearing designation | GE20-XL-KTT-B |
| Bore diameter | 20.0 mm |
| Brand | INA |
| Connection thread for lubrication | M6 |
| Distance fixing bore | 63.5 mm |
| Distance raceway | 19.0 mm |
| Fatigue load limit, radial | 345.0 N |
| Fixing bore | 11.5 mm |
| Flange width | 86.0 mm |
| Bearing in kit | GE20-XL-KTT-B |
| Bearing sealed | Yes |
| Bearing sort | RIBB |
| Bearing split | No |
| Housing opening | combi |
| Distance between mounting bolt centerlines (length) | 89.8026 mm |
| Height bearing seat | 43.0 mm |
| Housing height | 86.0 mm |
| Housing in kit | TCJ20-XL-N |
| Housing material | GG |
| Housing shape | Viereck |
| Housing sort | Flanged |
| Housing split | Nein |
| Inner diameter bearing | 20.0 mm |
| Housing length | 86.0 mm |
| Location on shaft | Acc |
| Housing qty bolts | 4 |
| Outer diameter bearing | 47.0 mm |
| Sealing type | LIP |
| Housing width | 45.6 mm |
| Basic dynamic load rating | 13600.0 N |
| Basic static load rating | 6600.0 N |
| Height housing | 29.0 mm |
| Housing | CJ04 |
| Locking collar total width | 43.7 mm |
| Marketing category | XL |
| Material | GG |
| Number of housings | 1.0 |
| Number of screwing holes | 4.0 |
| Outside diameter locking device | 33.0 mm |
| PFAS | nein |
| Protecting cap | KASK04 |
| Shoulder diameter housing | 68.0 mm |
| Thickness of flange | 10.0 mm |
| Total height unit | 45.6 mm |
| Width across flats | 3.0 mm |
| Groove | N |
