537,76 zł

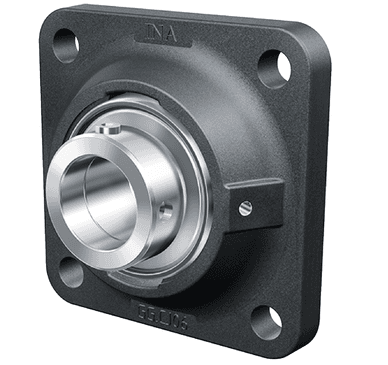

Housing units TCJ, four-bolt flanged housing units, cast iron, eccentric locking collar, T seals
| Class description short | Flanged housing unit |
| Mass netto | 3.49 kg |
| Operating temperature min. | -20.0 °C |
| Operating temperature max. | 120.0 °C |
| Basic dynamic load rating, radial | 46000.0 N |
| Basic static load rating, radial | 29000.0 N |
| REACH | REACH conform |
| RoHS | RoHS compliant |
| Bearing designation | GE55-XL-KTT-B |
| Bore diameter | 55.0 mm |
| Brand | INA |
| Connection thread for lubrication | M6 |
| Distance fixing bore | 130.0 mm |
| Distance raceway | 31.0 mm |
| Fatigue load limit, radial | 1240.0 N |
| Fixing bore | 18.0 mm |
| Flange width | 162.0 mm |
| Bearing sealed | Yes |
| Bearing sort | RIBB |
| Bearing split | No |
| Housing opening | durchgehend |
| Distance between mounting bolt centerlines (length) | 183.8478 mm |
| Height bearing seat | 81.0 mm |
| Housing height | 162.0 mm |
| Housing material | GG |
| Housing shape | Viereck |
| Housing sort | Flanged |
| Housing split | Nein |
| Inner diameter bearing | 55.0 mm |
| Housing length | 162.0 mm |
| Location on shaft | Acc |
| Housing qty bolts | 4 |
| Outer diameter bearing | 100.0 mm |
| Sealing type | LIP |
| Housing width | 74.6 mm |
| Basic dynamic load rating | 46000.0 N |
| Basic static load rating | 29000.0 N |
| Height housing | 43.5 mm |
| Housing | CJ11 |
| Locking collar total width | 71.4 mm |
| Marketing category | XL |
| Material | GG |
| Number of housings | 1.0 |
| Number of screwing holes | 4.0 |
| Outside diameter locking device | 76.0 mm |
| PFAS | nein |
| Shoulder diameter housing | 140.0 mm |
| Thickness of flange | 15.0 mm |
| Total height unit | 74.6 mm |
| Width across flats | 5.0 mm |
