217,34 zł

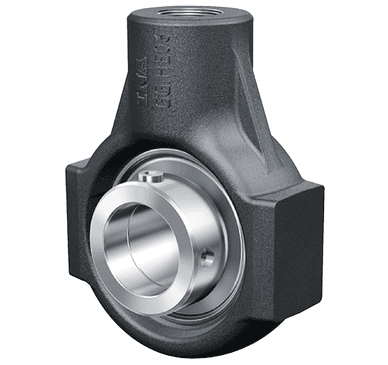

Take-up housing units THE, cast iron housing, radial insert ball bearing with eccentric locking collar, T seals
| Class description short | Take-up housing unit |
| Mass netto | 0.76 kg |
| Operating temperature min. | -20.0 °C |
| Operating temperature max. | 120.0 °C |
| REACH | REACH compliant with declarable lead proportion |
| RoHS | RoHS compliant with declarable substances |
| Bearing designation | GE25-XL-KTT-B |
| Bore diameter | 25.0 mm |
| Brand | INA |
| Connection thread for lubrication | M6 |
| Distance shaft axis | 64.0 mm |
| Bearing in kit | GE25-XL-KTT-B |
| Bearing sealed | Yes |
| Bearing sort | RIBB |
| Bearing split | No |
| Housing opening | durchgehend |
| Height bearing seat | 64.0 mm |
| Housing height | 70.0 mm |
| Housing in kit | THE25-XL |
| Housing material | GG |
| Housing shape | Loch_unten |
| Housing sort | Take-up |
| Housing split | Nein |
| Inner diameter bearing | 25.0 mm |
| Housing length | 99.0 mm |
| Location on shaft | Acc |
| Housing qty bolts | 1 |
| Outer diameter bearing | 52.0 mm |
| Sealing type | LIP |
| Housing width | 44.5 mm |
| Basic dynamic load rating | 14900.0 N |
| Basic static load rating | 7800.0 N |
| Height housing fixing side | 35.0 mm |
| Housing | HE05 |
| Housing total width | 70.0 mm |
| Length of guidance face | 38.0 mm |
| Length total | 99.0 mm |
| Marketing category | XL |
| Material | GG |
| PFAS | nein |
| Thread depth | 22.0 mm |
| Thread fixing bore | M20 |
| Width housing | 28.0 mm |
