423,37 zł

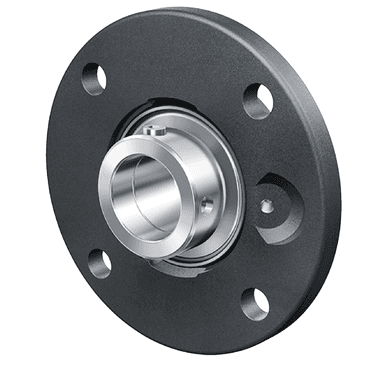

Housing units TME, four-bolt flanged housing units, cast iron, centring spigot, eccentric locking collar, T seals
| Class description short | Flanged housing unit |
| Mass netto | 1.978 kg |
| Operating temperature min. | -20.0 °C |
| Operating temperature max. | 120.0 °C |
| Basic dynamic load rating, radial | 32500.0 N |
| Basic static load rating, radial | 20400.0 N |
| REACH | REACH conform |
| RoHS | RoHS compliant |
| Bearing designation | GE45-XL-KTT-B |
| Bore diameter | 45.0 mm |
| Brand | INA |
| Chamfer width | 2.0 mm |
| Connection thread for lubrication | M6 |
| Diameter spigot | 105.0 mm |
| Diameter spigot clearance | h8 |
| Distance raceway | 2.0 mm |
| Fatigue load limit, radial | 970.0 N |
| Fixing bore | 14.0 mm |
| Bearing in kit | GE45-XL-KTT-B |
| Bearing sealed | Yes |
| Bearing sort | RIBB |
| Bearing split | No |
| Housing opening | durchgehend |
| Distance between mounting bolt centerlines (length) | 130.0 mm |
| Height bearing seat | 77.5 mm |
| Housing height | 155.0 mm |
| Housing in kit | TME45-XL |
| Housing material | GG |
| Housing shape | Rund |
| Housing sort | Flanged |
| Housing split | Nein |
| Inner diameter bearing | 45.0 mm |
| Housing length | 155.0 mm |
| Location on shaft | Acc |
| Housing qty bolts | 4 |
| Outer diameter bearing | 85.0 mm |
| Sealing type | LIP |
| Housing width | 56.5 mm |
| Basic dynamic load rating | 34500.0 N |
| Basic static load rating | 20400.0 N |
| Height flange | 155.0 mm |
| Height housing | 25.0 mm |
| Housing | GG.ME09 |
| Locking collar total width | 56.5 mm |
| Marketing category | XL |
| Material | GG |
| Number of housings | 1.0 |
| Number of screwing holes | 4.0 |
| PFAS | nein |
| Pitch circle diameter (holes) | 130.0 mm |
| Thickness of flange | 12.0 mm |
| Total height unit | 32.9 mm |
