1832,95 zł

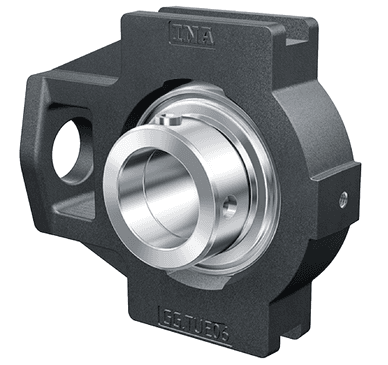

Take-up housing units TTUE, cast iron housing, radial insert ball bearing with eccentric locking collar, T seals
| Class description short | Take-up housing unit |
| Mass netto | 7.7 kg |
| Operating temperature min. | -20.0 °C |
| Operating temperature max. | 120.0 °C |
| REACH | REACH compliant with declarable lead proportion |
| RoHS | RoHS compliant with declarable substances |
| Bearing designation | GE80-XL-KTT-B |
| Bore diameter | 80.0 mm |
| Brand | INA |
| Connection thread for lubrication | M6 |
| Distance of raceway to locking collar | 47.3 mm |
| Distance guidance grooves | 165.0 mm |
| Distance shaft axis | 140.0 mm |
| Fixing bore | 41.0 mm |
| Bearing in kit | GE80-XL-KTT-B |
| Bearing sealed | Yes |
| Bearing sort | RIBB |
| Bearing split | No |
| Housing opening | durchgehend |
| Height bearing seat | 140.0 mm |
| Housing height | 184.0 mm |
| Housing in kit | TTUE80-XL |
| Housing material | GG |
| Housing shape | Loch_seitlich |
| Housing sort | Take-up |
| Housing split | Nein |
| Inner diameter bearing | 80.0 mm |
| Housing length | 230.0 mm |
| Location on shaft | Acc |
| Housing qty bolts | 1 |
| Outer diameter bearing | 140.0 mm |
| Sealing type | LIP |
| Housing width | 70.7 mm |
| Basic dynamic load rating | 76000.0 N |
| Basic static load rating | 54000.0 N |
| Height | 184.0 mm |
| Height housing fixing side | 110.0 mm |
| Height recess | 70.0 mm |
| Housing | TUE16 |
| Length fixed link | 20.0 mm |
| Length guidance groove | 120.0 mm |
| Length total | 230.0 mm |
| Locking collar total width | 70.7 mm |
| Lower distance guidance groove tolerance | -0.25 mm |
| Marketing category | XL |
| Material | GG |
| PFAS | nein |
| Upper distance guidance groove tolerance | 0.25 mm |
| Width guidance groove | 28.0 mm |
| Width guidance groove clearance | H13 |
| Width housing | 50.0 mm |
| Width housing fixing side | 70.0 mm |
| Width recess | 35.0 mm |
