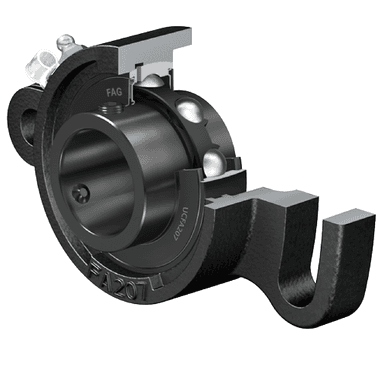

Housing units UCFA, cast iron housing, radial insert ball bearing with grub screws in inner ring, RSR seals, for swivel motion
| Class description short | Take-up housing unit |
| Mass netto | 440.0 g |
| Operating temperature min. | -20.0 °C |
| Operating temperature max. | 120.0 °C |
| REACH | REACH compliant with declarable lead proportion |
| RoHS | RoHS compliant with declarable substances |
| Bearing designation | UC201 |
| Bore diameter | 12.0 mm |
| Brand | FAG |
| Connection thread for lubrication | M6 |
| Distance fixing bore | 78.0 mm |
| Distance raceway | 15.0 mm |
| Fixing bore | 10.0 mm |
| Bearing in kit | UC201 |
| Bearing sealed | Yes |
| Bearing sort | RIBB |
| Bearing split | No |
| Housing opening | durchgehend |
| Distance between mounting bolt centerlines (length) | 78.0 mm |
| Height bearing seat | 49.0 mm |
| Housing height | 60.0 mm |
| Housing in kit | UCFA201-J7 |
| Housing material | GG |
| Housing shape | Oeffner |
| Housing sort | Take-up |
| Housing split | Nein |
| Inner diameter bearing | 12.0 mm |
| Housing length | 98.0 mm |
| Location on shaft | Acc |
| Housing qty bolts | 2-3 |
| Outer diameter bearing | 47.0 mm |
| Sealing type | LIP |
| Housing width | 33.3 mm |
| Basic dynamic load rating | 13600.0 N |
| Basic static load rating | 6600.0 N |
| Height housing | 25.5 mm |
| Housing | FA204 |
| Length (slot) | 40.0 mm |
| Length total | 98.0 mm |
| Material | GG |
| PFAS | nein |
| Shoulder diameter housing | 60.0 mm |
| Thickness of flange | 12.0 mm |
| Total height unit | 33.3 mm |
| Width housing slot side | 50.0 mm |
| Width (slot) | 10.0 mm |
