532,47 zł

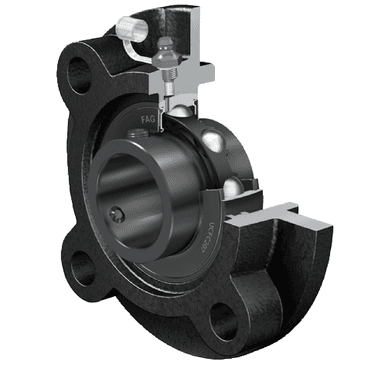

Flanged housing unit UCFC
| Class description short | Flanged housing unit |
| Mass netto | 6.63 kg |
| Width | 74.6 mm |
| Operating temperature min. | -20.0 °C |
| Operating temperature max. | 120.0 °C |
| Basic dynamic load rating, radial | 66000.0 N |
| Basic static load rating, radial | 44000.0 N |
| REACH | REACH compliant with declarable lead proportion |
| RoHS | RoHS compliant with declarable substances |
| Bearing designation | UC214 |
| Bore diameter | 70.0 mm |
| Brand | FAG |
| Connection thread for lubrication | M6 |
| Diameter spigot | 150.0 mm |
| Diameter spigot clearance | h8 |
| Distance fixing bore | 125.15 mm |
| Distance raceway | 17.0 mm |
| Fatigue load limit, radial | 2300.0 N |
| Fixing bore | 19.0 mm |
| Bearing in kit | UC214 |
| Bearing sealed | Yes |
| Bearing sort | RIBB |
| Bearing split | No |
| Housing opening | durchgehend |

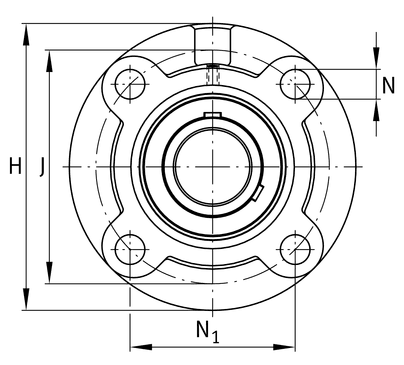

| Distance between mounting bolt centerlines (length) | 177.0 mm |
| Height bearing seat | 107.5 mm |
| Housing height | 215.0 mm |
| Housing in kit | UCFC214-J7 |
| Housing material | GG |
| Housing shape | Rund |
| Housing sort | Flanged |
| Housing split | Nein |
| Inner diameter bearing | 70.0 mm |
| Housing length | 215.0 mm |
| Location on shaft | Acc |
| Housing qty bolts | 4 |
| Outer diameter bearing | 125.0 mm |
| Sealing type | LIP |
| Housing width | 74.6 mm |
| Basic dynamic load rating | 66000.0 N |
| Basic static load rating | 44000.0 N |
| Height flange | 215.0 mm |
| Height housing | 40.0 mm |
| Height spigot | 14.0 mm |
| Housing | FC214 |
| Material | GG |
| Number of housings | 1.0 |
| Number of screwing holes | 4.0 |
| PFAS | nein |
| Pitch circle diameter (holes) | 177.0 mm |
| Thickness of flange | 18.0 mm |
| Total height unit | 61.4 mm |
