261,25 zł

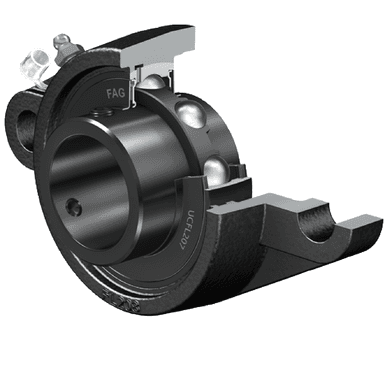

Flanged housing unit UCFL
| Class description short | Flanged housing unit |
| Mass netto | 3.946 kg |
| Width | 65.1 mm |
| Operating temperature min. | -20.0 °C |
| Operating temperature max. | 120.0 °C |
| Basic dynamic load rating, radial | 56000.0 N |
| Basic static load rating, radial | 36000.0 N |
| REACH | REACH compliant with declarable lead proportion |
| RoHS | RoHS compliant with declarable substances |
| Bearing designation | UC212 |
| Bore diameter | 60.0 mm |
| Brand | FAG |
| Connection thread for lubrication | M6 |
| Distance fixing bore | 202.0 mm |
| Distance raceway | 29.0 mm |
| Fatigue load limit, radial | 1870.0 N |
| Fixing bore | 23.0 mm |
| Flange width | 140.0 mm |
| Bearing in kit | UC212 |
| Bearing sealed | Yes |
| Bearing sort | RIBB |
| Bearing split | No |
| Housing opening | durchgehend |
| Distance between mounting bolt centerlines (length) | 202.0 mm |
| Height bearing seat | 125.0 mm |
| Housing height | 250.0 mm |
| Housing in kit | UCFL212-J7 |
| Housing material | GG |
| Housing shape | Oval |
| Housing sort | Flanged |
| Housing split | Nein |
| Inner diameter bearing | 60.0 mm |
| Housing length | 140.0 mm |
| Location on shaft | Acc |
| Housing qty bolts | 2 |
| Outer diameter bearing | 110.0 mm |
| Sealing type | LIP |
| Housing width | 68.7 mm |
| Basic dynamic load rating | 56000.0 N |
| Basic static load rating | 36000.0 N |
| Height flange | 250.0 mm |
| Height housing | 48.0 mm |
| Housing | FL212 |
| Material | GG |
| Number of housings | 1.0 |
| Number of screwing holes | 2.0 |
| PFAS | nein |
| Thickness of flange | 20.0 mm |
| Total height unit | 68.7 mm |
