133,70 zł

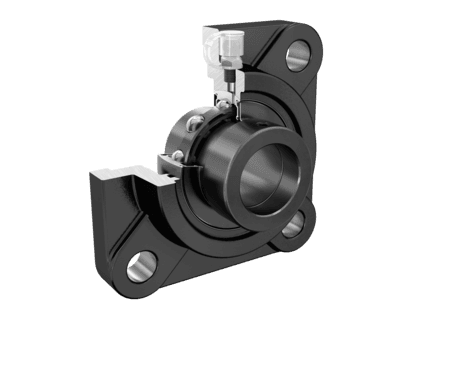

Flanged housing units UELF, cast iron housing, four-bolt flange, radial insert ball bearing with eccentric locking collar, RSR seals
| Class description short | Flanged housing unit |
| Mass netto | 2.74 kg |
| Operating temperature min. | -20.0 °C |
| Operating temperature max. | 120.0 °C |
| Basic dynamic load rating, radial | 37500.0 N |
| Basic static load rating, radial | 23200.0 N |
| Bearing designation | UEL210 |
| Bore diameter | 50.0 mm |
| Brand | FAG |
| Connection thread for lubrication | M6 |
| Distance fixing bore | 111.0 mm |
| Distance raceway | 22.0 mm |
| Fixing bore | 16.0 mm |
| Flange width | 143.0 mm |
| Bearing in kit | UEL210 |
| Bearing sealed | Yes |
| Bearing sort | RIBB |
| Bearing split | No |
| Housing opening | durchgehend |
| Distance between mounting bolt centerlines (length) | 111.0 mm |
| Housing height | 143.0 mm |
| Housing in kit | UELF210 |
| Housing material | GG |
| Housing shape | Viereck |
| Housing sort | Flanged |
| Housing split | Nein |
| Inner diameter bearing | 50.0 mm |
| Housing length | 143.0 mm |
| Location on shaft | Acc |
| Housing qty bolts | 4 |
| Sealing type | LIP |
| Housing width | 62.8 mm |
| Basic dynamic load rating | 37500.0 N |
| Basic static load rating | 23200.0 N |
| Height housing | 40.0 mm |
| Housing | GEHF210-GG |
| Locking collar total width | 62.8 mm |
| Outside diameter eccentric locking collar | 69.0 mm |
| Thickness of flange | 18.0 mm |
| Total height unit | 60.2 mm |
