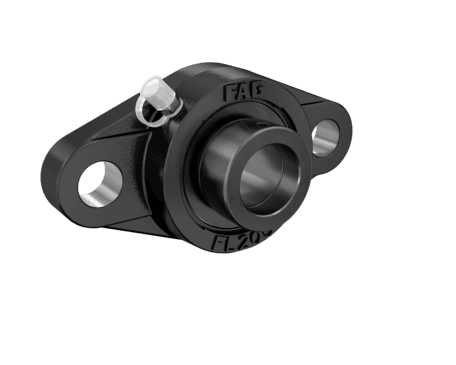

Flanged housing unit UEFL, cast iron housing, two-bolt flange, radial insert ball bearing with eccentric locking collar, RSR seals
| Class description short | Flanged housing unit |
| Mass netto | 2.07 kg |
| Operating temperature min. | -20.0 °C |
| Operating temperature max. | 120.0 °C |
| Basic dynamic load rating, radial | 34500.0 N |
| Basic static load rating, radial | 20400.0 N |
| Bearing designation | UEL209 |
| Bore diameter | 45.0 mm |
| Brand | FAG |
| Distance fixing bore | 148.0 mm |
| Distance raceway | 22.0 mm |
| Fixing bore | 19.0 mm |
| Flange width | 108.0 mm |
| Bearing in kit | UEL209 |
| Bearing sealed | Yes |
| Bearing sort | RIBB |
| Bearing split | No |
| Housing opening | durchgehend |
| Distance between mounting bolt centerlines (length) | 148.0 mm |
| Housing height | 188.0 mm |
| Housing in kit | UELFL209 |
| Housing material | GG |
| Housing shape | Oval |
| Housing sort | Flanged |
| Housing split | Nein |
| Inner diameter bearing | 45.0 mm |
| Housing length | 108.0 mm |
| Location on shaft | Acc |
| Housing qty bolts | 2 |
| Sealing type | LIP |
| Housing width | 57.1 mm |
| Basic dynamic load rating | 34500.0 N |
| Basic static load rating | 20400.0 N |
| Height flange | 188.0 mm |
| Height housing | 38.0 mm |
| Housing | GEHFL209-GG |
| Locking collar total width | 56.5 mm |
| Material | GG |
| Outside diameter eccentric locking collar | 63.0 mm |
| Thickness of flange | 18.0 mm |
