172,82 zł

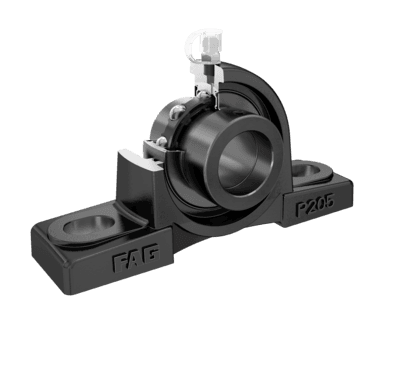

Plummer block housing units UELP, cast iron housing, with long base, radial insert ball bearing with eccentric locking collar, RSR seals
| Class description short | Plummer block housing unit |
| Mass netto | 3.69 kg |
| Operating temperature min. | -20.0 °C |
| Operating temperature max. | 120.0 °C |
| Basic dynamic load rating, radial | 46000.0 N |
| Basic static load rating, radial | 29000.0 N |
| Bearing designation | UEL211 |
| Bore diameter | 55.0 mm |
| Brand | FAG |
| Connection thread for lubrication | M6 |
| Distance of raceway to locking collar | 43.6 mm |

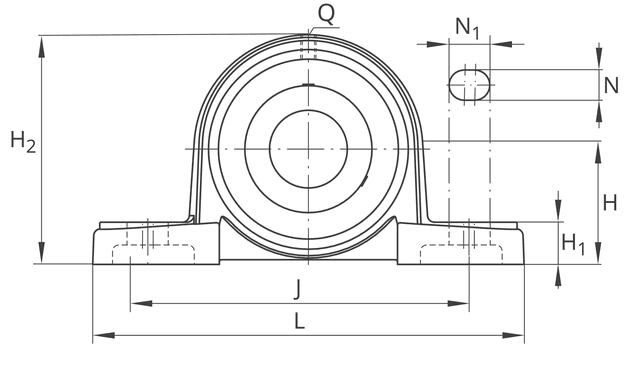

| Distance fixing bore | 171.0 mm |
| Distance shaft axis | 63.5 mm |
| Bearing in kit | UEL211 |
| Bearing sealed | Yes |
| Bearing sort | RIBB |
| Bearing split | No |
| Housing opening | durchgehend |
| Distance between mounting bolt centerlines (length) | 171.0 mm |
| Height bearing seat | 63.5 mm |
| Housing height | 126.0 mm |
| Housing in kit | UELP211 |
| Housing material | GG |
| Housing shape | Fuss_lang |
| Housing sort | Plummer |
| Housing split | Nein |
| Inner diameter bearing | 55.0 mm |
| Housing length | 219.0 mm |
| Location on shaft | Acc |
| Housing qty bolts | 2 |
| Sealing type | LIP |
| Basic dynamic load rating | 46000.0 N |
| Basic static load rating | 29000.0 N |
| Height | 126.0 mm |
| Height (base) | 23.0 mm |
| Housing | GEHP211-GG |
| Length (slot) | 25.0 mm |
| Length total | 219.0 mm |
| Locking collar total width | 71.4 mm |
| Material | GG |
| Width (base) | 60.0 mm |
| Width (head) | 32.0 mm |
| Width (slot) | 20.0 mm |
| Material | GG |
