1228,89 zł

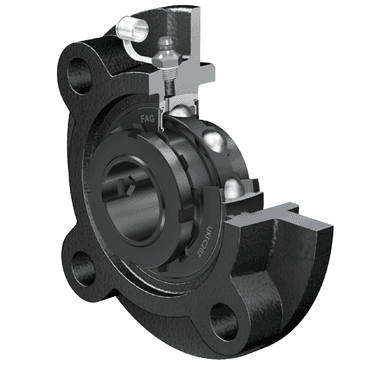

Flanged housing unit UKFC
| Class description short | Flanged housing unit |
| Mass netto | 12.76 kg |
| Width | 51.0 mm |
| Operating temperature min. | -20.0 °C |
| Operating temperature max. | 120.0 °C |
| Basic dynamic load rating, radial | 102000.0 N |
| Basic static load rating, radial | 72000.0 N |
| REACH | REACH compliant with declarable lead proportion |
| RoHS | RoHS compliant with declarable substances |
| Bearing designation | UK218 |
| Bore diameter | 80.0 mm |
| Brand | FAG |
| Diameter spigot | 190.0 mm |
| Diameter spigot clearance | h8 |
| Distance fixing bore | 155.55 mm |
| Distance raceway | 22.0 mm |
| Fatigue load limit, radial | 3350.0 N |
| Fixing bore | 23.0 mm |
| Bearing in kit | UK218 |
| Bearing sealed | No |
| Bearing sort | RIBB |
| Bearing split | No |
| Housing opening | durchgehend |
| Distance between mounting bolt centerlines (length) | 220.0 mm |
| Height bearing seat | 132.5 mm |
| Housing height | 265.0 mm |
| Housing in kit | UKFC218-J7 |
| Housing material | GG |
| Housing shape | Rund |
| Housing sort | Flanged |
| Housing split | Nein |
| Inner diameter bearing | 80.0 mm |
| Housing length | 265.0 mm |
| Location on shaft | K |
| Housing qty bolts | 4 |
| Outer diameter bearing | 160.0 mm |
| Sealing type | LIP |
| Housing width | 86.0 mm |
| Basic dynamic load rating | 102000.0 N |
| Basic static load rating | 72000.0 N |
| Height flange | 265.0 mm |
| Height housing | 50.0 mm |
| Height spigot | 18.0 mm |
| Housing | FC218 |
| Locking collar total width | 86.0 mm |
| Material | GG |
| Number of housings | 1.0 |
| Number of screwing holes | 4.0 |
| Outside diameter eccentric locking collar | 120.0 mm |
| PFAS | nein |
| Pitch circle diameter (holes) | 220.0 mm |
| Thickness of flange | 20.0 mm |
| Total height unit | 65.7 mm |
