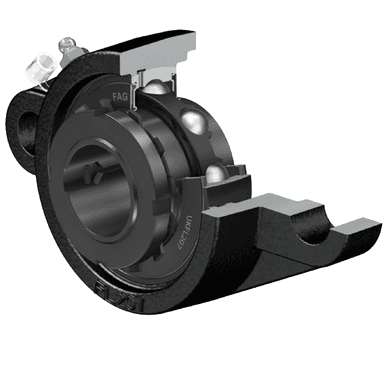

Flanged housing unit UKFL
| Class description short | Flanged housing unit |
| Mass netto | 0.69 kg |
| Width | 23.0 mm |
| Operating temperature min. | -20.0 °C |
| Operating temperature max. | 120.0 °C |
| Basic dynamic load rating, radial | 14900.0 N |
| Basic static load rating, radial | 7800.0 N |
| REACH | REACH compliant with declarable lead proportion |
| RoHS | RoHS compliant with declarable substances |
| Bearing designation | UK205 |
| Bore diameter | 20.0 mm |
| Brand | FAG |
| Distance fixing bore | 99.0 mm |
| Distance raceway | 16.0 mm |
| Fatigue load limit, radial | 410.0 N |
| Fixing bore | 16.0 mm |
| Flange width | 68.0 mm |
| Bearing in kit | UK205 |
| Bearing sealed | Yes |
| Bearing sort | RIBB |
| Bearing split | No |
| Housing opening | durchgehend |
| Distance between mounting bolt centerlines (length) | 99.0 mm |
| Height bearing seat | 65.0 mm |
| Housing height | 130.0 mm |
| Housing in kit | UKFL205-J7 |
| Housing material | GG |
| Housing shape | Oval |
| Housing sort | Flanged |
| Housing split | Nein |
| Inner diameter bearing | 20.0 mm |
| Housing length | 68.0 mm |
| Location on shaft | K |
| Housing qty bolts | 2 |
| Outer diameter bearing | 52.0 mm |
| Sealing type | LIP |
| Housing width | 35.0 mm |
| Basic dynamic load rating | 14900.0 N |
| Basic static load rating | 7800.0 N |
| Height flange | 130.0 mm |
| Height housing | 27.0 mm |
| Housing | FL205 |
| Locking collar total width | 35.0 mm |
| Material | GG |
| Number of housings | 1.0 |
| Number of screwing holes | 2.0 |
| Outside diameter eccentric locking collar | 38.0 mm |
| PFAS | nein |
| Thickness of flange | 15.0 mm |
